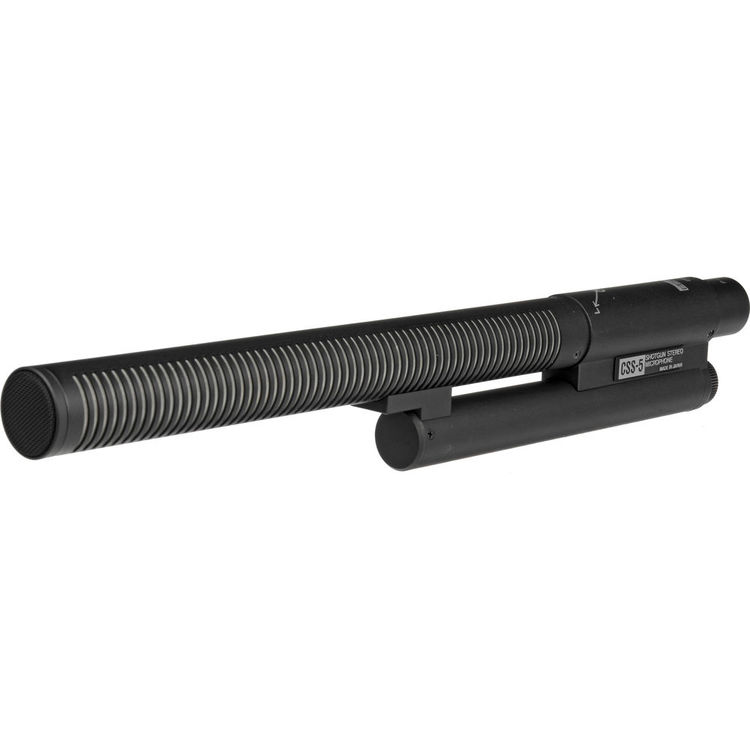

CSS-5 Mono/Stereo/Wide switchable shotgun microphone (no accessories included)
The CSS-5 Stereo Mono Switchable Shotgun Microphone from Sanken is designed for capturing stereo or mono signal and can be used for television, film, concert recording, sound design and much more. The flexibility of the CSS-5 lies within it's ability to capture in Normal (stereo), Mono and Wide (stereo) modes.
Main Benefits

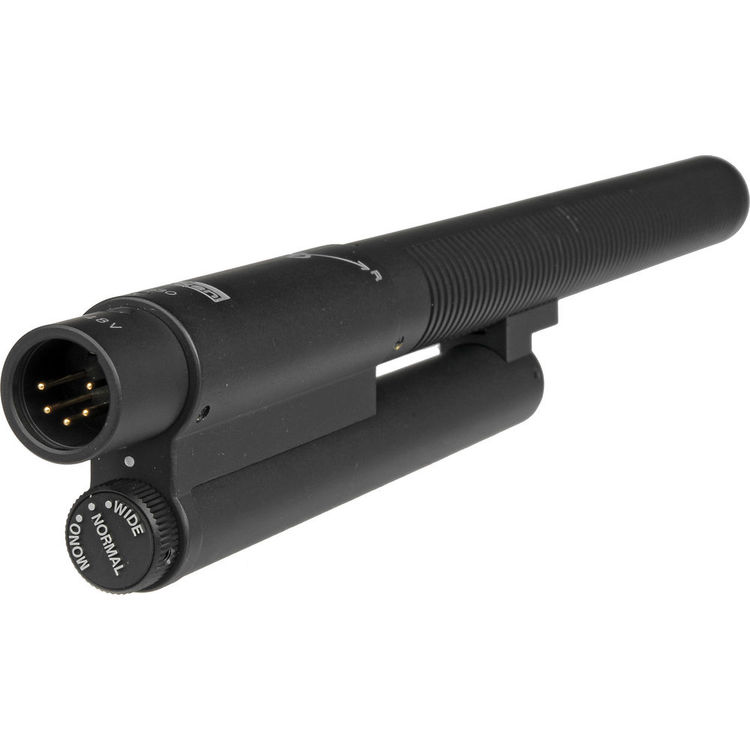

- Mono, Stereo & Wide Stereo Modes
- Array of 5 Directional Elements
- Stable Operation in Humid Conditions
Description
The accurate, transparent signal reproduction is based on an array of five directional condenser elements, with PPS (Polyphenylene-Sulfide) diaphragms to provide optimum humidity / temperature stability. The CSS-5 is equally responsive in the horizontal and vertical planes with high sensitivity, wide frequency response and excellent dynamic range. The CSS-5 is small and lightweight with switchable mono / stereo functions. The standard 19mm diameter permits use of a wide range of accessories developed for enhanced performance and field mobility.
Tech Specs
| Transducer |
Condenser |
| Polar Pattern |
Supercardioid |
| Frequency Range |
100 Hz to 15 kHz |
| Equivalent Noise Level |
18 dB A-Weighted |
| Maximum SPL |
120 dB SPL |
| THD |
1% |
| Impedance |
240 Ohms @ 1 kHz |
| Sensitivity |
71 mV/Pa |
| Output Connectors |
1 x 5-Pin XLR |
| Operating Current Consumption |
2.5 mA |
| Operating Voltage |
48 V ± 4 V |
| Length |
11.81" / 300 mm |
| Diameter |
1.77" / 45 mm |
| Weight |
8.82 oz / 250 g |
| Package Weight |
1.3 lb |
| Box Dimensions (LxWxH) |
13.2 x 3.4 x 2.1" |
