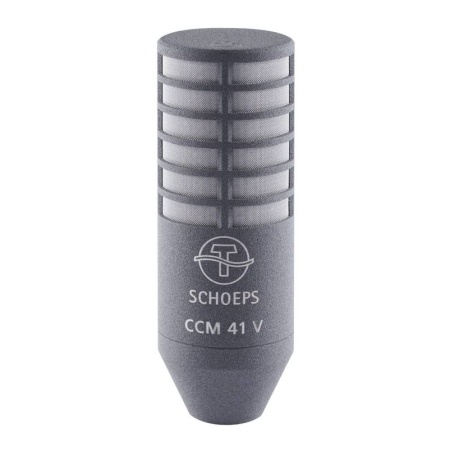

Schoeps CCM 41V U Compact Microphone, supercardioid, side addressed, permanently attached cable, incl. SGC and premium case
Like the CCM 41, the CCM 41V is useful in all situations with music or speech, either as “spot“ microphones or as overall directional microphones. However, this type of microphone is addressed from the side.
It excels particularly in the constancy of its polar response throughout the audio spectrum. As a result, sound within 90º on either side of the main axis is picked up with virtually no alteration of frequency response or tone color. This is strongly evident with sound sources that are in motion, but is also of great benefit in obtaining stable, precise stereo imaging for normal music recordings
- supercardioid with especially consistent directionality throughout its frequency range
- “vertical” (side-addressed) supercardioid capsule
- for a very wide range of recording applications
- high directivity, comparable to that of a short “shotgun“ microphone up through midrange frequencies
- often preferred for use in music and speech recording, as a spot microphone and also as a main microphone, especially when using the OCT recording method
Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs for a small extra charge.
Application
This capsule is preferred for use as a support microphone as well as in the OCT (“Optimized Cardioid Triangle“) microphone system for surround sound recording introduced by Dr. Theile (formerly at the Institute for Broadcast Technology). (The front left and right channels in that system are picked up by sideways facing supercardioid microphones)
The CCM 41V may be easier to use in near-coincident setups than the CCM 41: the microphone bodies do not get in each other's way.
Specifications
| All CCMs |
| Current consumption with 12 V |
8 mA |
| Current consumption with 48 V |
4 mA |
| Impedance |
90 Ω |
| Minimum recommended load impedance |
600 Ω |
| Low-cut frequency |
20 Hz |
| Length (L version) |
without connector: 46 – 58 mm |
| Length (U version) |
46 – 58 mm |
| Diameter |
20 mm |
| Weight (U-version) |
33 g |
| Weight (L-version) |
43 g |
| Surface finish |
matte gray |
For further specifications see those of the corresponding capsule:
| MK 41 V |
| Frequency range |
40 Hz - 20 kHz |
| Sensitivity |
14 mV/Pa |
| Equivalent noise level (A-weighted) |
14 dB-A |
| Equivalent noise level (CCIR) |
23 dB |
| Signal-to-noise ratio (A-weighted) |
80 dB-A |
| Maximum sound pressure level at 0.5% THD |
132 dB-SPL |
Graphics
Frequency response and polar diagram MK 41V + CMC 6 and CCM 41V
