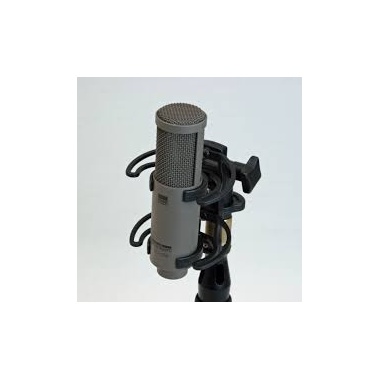

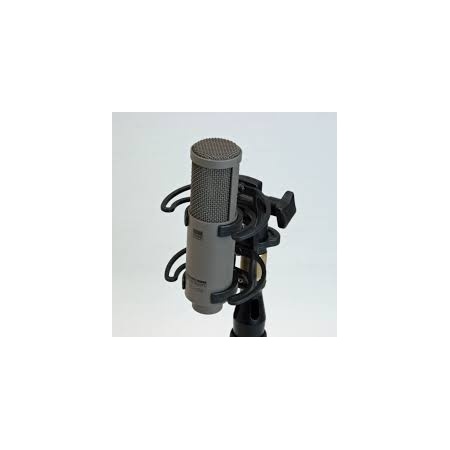

CU-55 Small size cardioid microphone
Small, wide frequency range condenser microphone designed mainly for music recording, the CU-55 captures sound beautifully not only for a full orchestra, but also in solo acoustic instrument performances.
Main Benefits
● Small, lightweight microphone with high sensitivity; easy to set up for the studio recording
● Captures natural, uncolored sound in versatile applications, especially in acoustic instruments performances
● Beautiful cardioid pattern and frequency response not only on-axis but at other angles
Description
The pad switch has a -10dB attenuation and gives the CU-55 two different sensitivity positions, which makes the CU-55 particularly suited for cleanly capturing sound ranging from slight sound to such explosive, high pressure sound sources as trumpets, percussions and drums. In addition to a very flat frequency response (40Hz to 20,000Hz), high maximum SPL of 137 dB at 1% THD and 15dB Equivalent Noise Level performances of the CU-55 offers very wide dynamic range.
Like all other Sanken microphones, the CU-55 is especially renowned not only for its high-quality audibility, but also its reliability.
Tech Specs
| Directivity |
Cardioid |
| Transducer |
DC biased condenser |
| Frequency range |
40Hz - 20kHz |
Sensitivity
(nominal at 1kHz) |
-26dB (50.1mV , 0dB=1V/Pa) : PAD 0dB
-36dB (15.8mV , 0dB=1V/Pa) : PAD -10dB
|
Equivalent noise level
(A-weighted) |
15dB-A |
| Max SPL (1% THD) |
137dB SPL : PAD 0dB
147dB SPL : PAD -10dB |
| Switch |
PAD switch 0/-10dB |
Output impedance
at 1KHz |
180 ohms |
| Powering |
+48±4V phantom |
| Current consumption |
3.5mA |
| Weight |
180g |
| Dimensions |
113mm X 30mm (diameter) |
| Surface finish |
matte brown paint |
| Connector |
XLR-3-12(M) |
