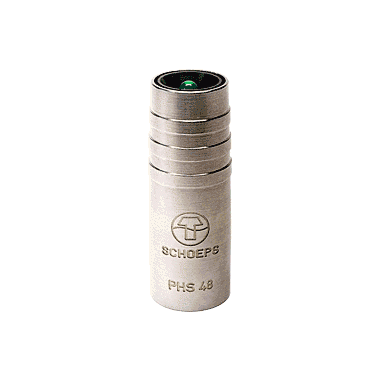

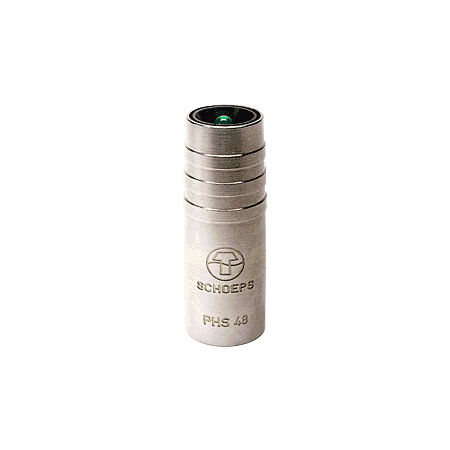

Schoeps PHS 48 Phantom power test plug
The PHS 48 can be plugged into a microphone input or cable that carries 48-Volt phantom power, to verify that sufficient current is available to power a SCHOEPS microphone.
According to the standards, a 48 V phantom powered microphone may draw a current of up to 10 mA per channel. SCHOEPS CMC 5, CMC 6 and CCM microphones actually need only 4 mA (ca. 5 mA if Active Accessories are used), so the PHS 48 tests for approximately this amount of available current at the required voltage level.
- quick test of 48 V phantom powering (current)
- indication by a green LED
Specifications
| PHS 48 |
| Connector |
XLR-3 |
| Length |
53 mm |
| Diameter |
19 mm |
| Surface finish |
Nickel |
