SW50300 - USB Connect:
RTW USB Connect (software expansion in connection with TM3-Primus, TM3-Pri-2U with firmware version 1-02 or higher) USB Connect supports the USB hybrid function of TM3-Primus for direct access of audio signals from a DAW. Additionally, USB Connect provides remote control of the Start/Stop/Reset functions without the need todefine TM3-Primus as a standard audio output device. The complimentary software is available for download at members area of RTW's website (Support/Manuals & Software) under "PC Software/RTW USB Connect" afterlogin. It can be operated as a PlugIn within a DAW or as Stand-alone application. Supported formats: most of the common plug-in formats for Mac® and Windows® systems.
--- Precondition: RTW Primus USB Audio Driver v3.34.0 or higher is installed on Windows® systems (also availableat members area)! ---
Main Benefits:
- Monitoring and metering at the same time.
- Plug-in operation for a direct audio connection between DAW and MM3 MusicMeter via USB Connect.
- Direct access of Stereo or 5.1 audio signals from the DAW.
- No need to define MM3 MusicMeter as standard audio output device in the computer system.
- Remote control of start/stop/reset functions, time scale of Chart instrument, and reference of RTA of the directly connected MM3 MusicMeter via plug-in.
- Start/stop/reset loudness functions can be linked to the DAW transport cursor.
- Stand-alone operation for monitoring and metering of audio signals without DAW.
Description

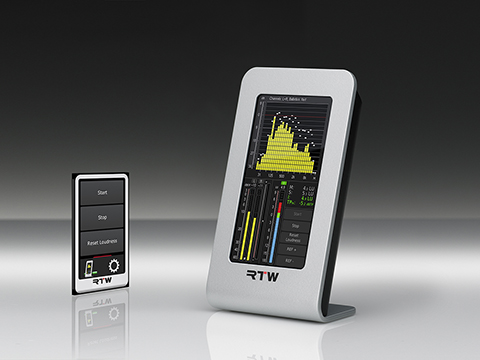

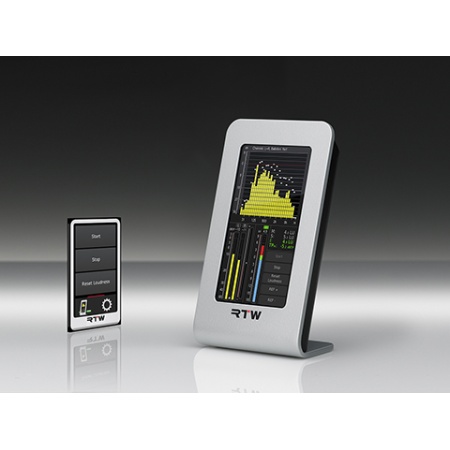

RTW USB Connect - Metering, Monitoring, Controlling
RTW USB Connect is a complimentary software expanding the field of applications for TM3-Primus with firmware version 1-02 or higher or MM3 MusicMeter. It supports the USB hybrid function of TM3-Primus or MM3 MusicMeter for direct access of audio signals from a DAW. Additionally, USB Connect provides remote control of the Start/Stop/Reset/Time/Ref+/Ref- functions without the need to define TM3-Primus or MM3 MusicMeter as a standard audio output device. The software is available for most of the common plug-in formats as well as stand-alone application for Mac® and Windows® systems.
- Monitoring and metering at the same time.
- Plug-in operation for a direct audio connection between DAW and TM3-Primus or MM3 MusicMeter via USB Connect.
- Direct access of Stereo or 5.1 audio signals from the DAW without dropping the audio interface.
- No need to define TM3-Primus or MM3 MusicMeter as standard audio output device in the computer system.
- Remote control of start/stop/reset functions, time scale of Chart instrument, and reference of RTA of the directly connected TM3-Primus or MM3 MusicMeter via plug-in.
- Start/stop/reset loudness functions can be linked to the DAW transport cursor.
- Stand-alone operation
- Sampling rates up to 96 kHz
Software and Release Notes including further details can be found on the "Downloads" tab.
System Requirements
System Requirements
- Dual-core-processor 2.5 GHz
- 4 GB RAM
- 200 MB Hard disk space
- Operating systems
- VST2.4, VST3 or AAX for Windows® 7 and 8, RTAS for Windows® 7
- VST3, RTAS, AAX, or AU for Mac® OS X 10.7.5, 10.8.5, 10.9.5, 10.10.3
- TM3-Primus or MM3-MusicMeter equipped with firmware version 1-68 or higher
- RTW USB Audio Driver v3.34.0 or higher is installed on Windows® systems
- Input selection of TM3-Primus is set to "USB audio 2.0" or "USB audio 5.1"
Further details can be found on the "Downloads" tab in the Release Notes.
Downloads
--- Please read first! --- The Release Notes include the manual for the configuration of software and TM3-Primus/MM3-MusicMeter.
Initially, a click to the link displays the End User License Aggreement. Please read it before using the RTW USB Connect software. After you have accepted, you will be forwarded to the download.
