WM-Connect
For connection to Wingman® IOS app. WM-Connect uses Bluetooth® Smart technology and comes with a right-angle USB A-to-B adapter and USB A-to-B cable adapter to connect to the 6-Series USB port or a CL-12's USB keyboard port.
Main Benefits
- Hardware Accessory for Wireless Control
- For 6-Series Mixers and Recorders
- Provides Wireless Remote Control
- Metadata Editing
- Connects to 6-Series USB Port
- Connects to CL-12 USB Keyboard Port
- Includes WM-Connect Dongle
- Includes Right Angle Adapter
- Includes Cable Adapter
Description

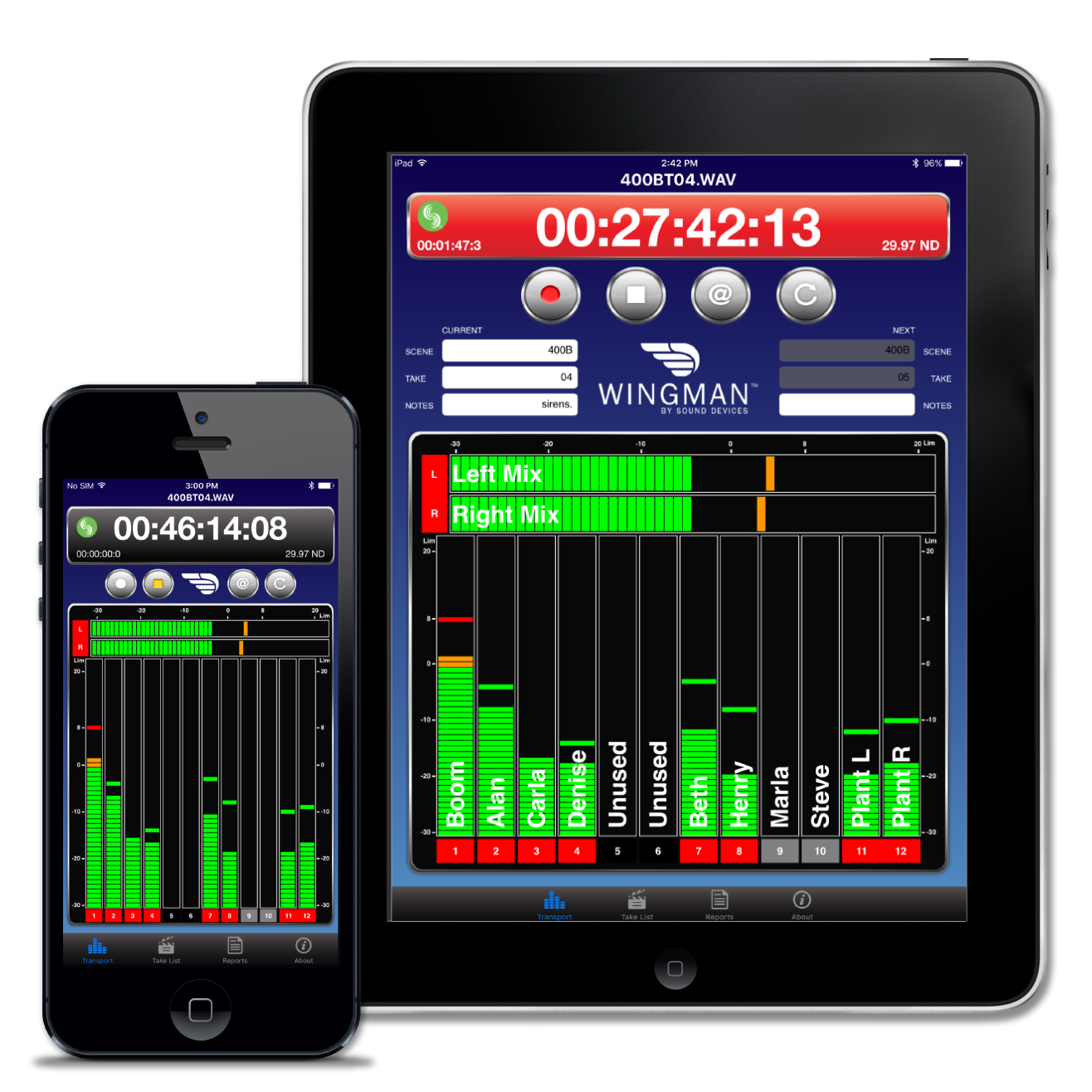

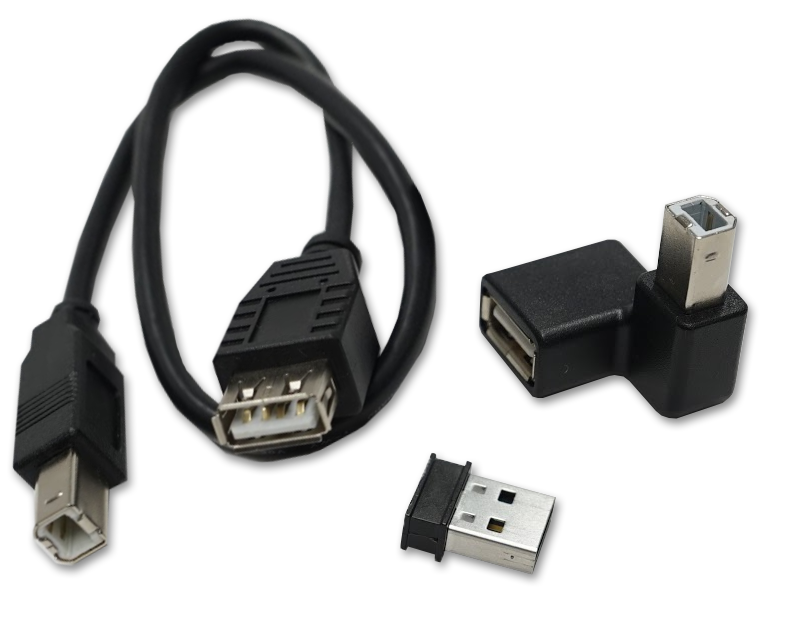

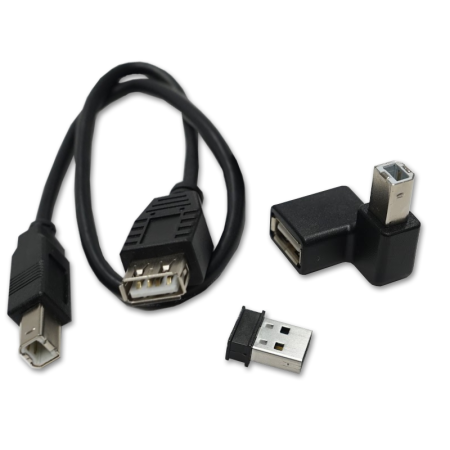

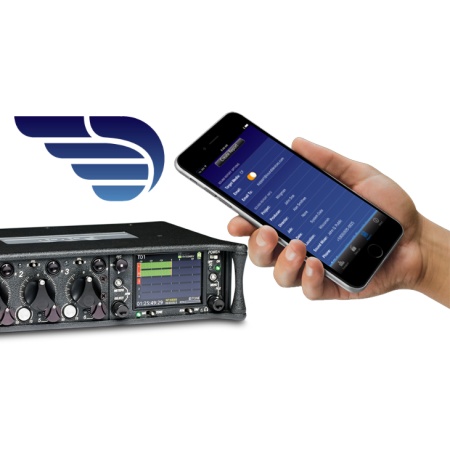

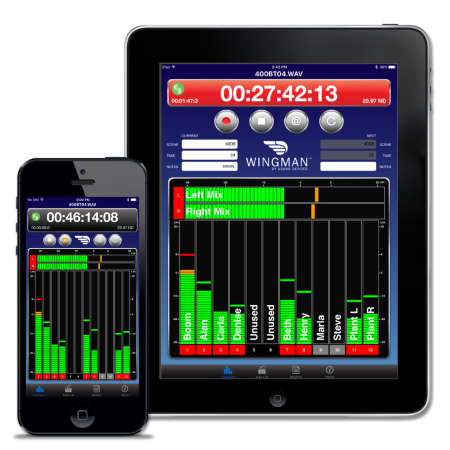

The WM-Connect from Sound Devices is a hardware accessory for the 6-Series mixer/recorder line that enables control of the mixers from the iOS Sound Devices Wingman app. It is a Bluetooth Smart USB dongle that provides wireless remote control and metadata editing of the 6-Series. The WM-Connect ships with a WM-Connect dongle, a USB-A to USB-B right angle adapter, and a USB-A to USB-B cable adapter which connects to the 6-Series USB port or a CL-12's USB keyboard port.
Tech Specs
| Frequency |
2.4 GHz |
| TX Power |
0 dBm |
| Sensitivity |
-93 dBm |
| Modulation |
GFSK |
| Symbol Rate |
1 Mbps |
| Power |
Operating Supply Voltage: 5 V |
| Interface Type |
USB |
| Antenna |
Internal integrated PCB |
| Range & Elevation (Line of Sight) |
65.6 to 131.2' / 20.0 to 40.0 m
0.0 to 16.4' / 0.0 to 5.0 m |
