ACL 204 ext. ant. SMA-M90

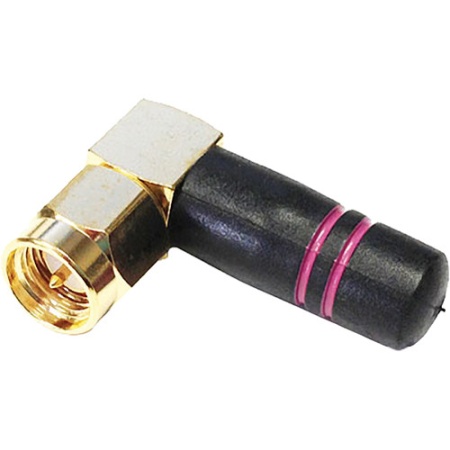

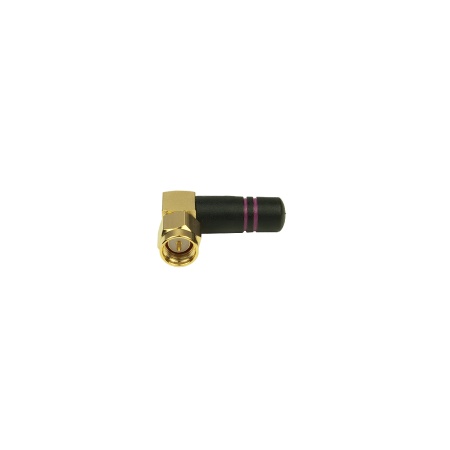

The ANT-2.4-SMA-M90 from Ambient Recording is a right-angle, helical whip antenna designed to work with all Lockit devices, and ideal for applications where cosmetic or functional requirements dictate a compact, aesthetically pleasing antenna package.This antenna is ruggedly constructed and able to withstand punishing environments. It attaches via an SMA connector.
Main Benefits:
- Compatible with All Lockit Devices
- Ultra-Compact Helical Whip
- Fully Weatherized
- Flexible Main Shaft
- Omni-Directional Pattern
- Low VSWR
Compatibility
ACL 204
ACN-TL
ACN-ML
ACN-LS
ACN-LSW
Tech Specs
| Type |
Ultra-compact helical whip |
| Connector |
SMA plug |
| Pattern |
Omnidirectional |
| Center Frequency |
2.45 GHz |
| Bandwidth |
300 MHz |
| Wavelength |
1/4 wave |
| Voltage Standing Wave Ratio (VSWR) |
< 2.0 typ. at center |
| Impedance |
50 Ohms |
| Operating Temperature Range |
-40 to 194° F / -40 to 90° C |
| Height |
1.01" / 25.6 mm |
