SW50300 - USB Connect RTW

SW50300 - USB Connect:

RTW USB Connect (software expansion in connection with TM3-Primus, TM3-Pri-2U with firmware version 1-02 or higher) USB Connect supports the USB hybrid function of TM3-Primus for direct access of audio signals from a DAW. Additionally, USB Connect provides remote control of the Start/Stop/Reset functions without the need todefine TM3-Primus as a standard audio output device. The complimentary software is available for download at members area of RTW's website (Support/Manuals & Software) under "PC Software/RTW USB Connect" afterlogin. It can be operated as a PlugIn within a DAW or as Stand-alone application. Supported formats: most of the common plug-in formats for Mac® and Windows® systems.

--- Precondition: RTW Primus USB Audio Driver v3.34.0 or higher is installed on Windows® systems (also availableat members area)! ---

Main Benefits:

• Monitoring and metering at the same time.
• Plug-in operation for a direct audio connection between DAW and MM3 MusicMeter via USB Connect.
• Direct access of Stereo or 5.1 audio signals from the DAW.
• No need to define MM3 MusicMeter as standard audio output device in the computer system.
• Remote control of start/stop/reset functions, time scale of Chart instrument, and reference of RTA of the directly connected MM3 MusicMeter via plug-in.
• Start/stop/reset loudness functions can be linked to the DAW transport cursor.
• Stand-alone operation for monitoring and metering of audio signals without DAW.

Description

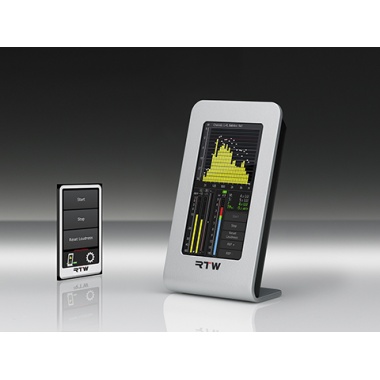

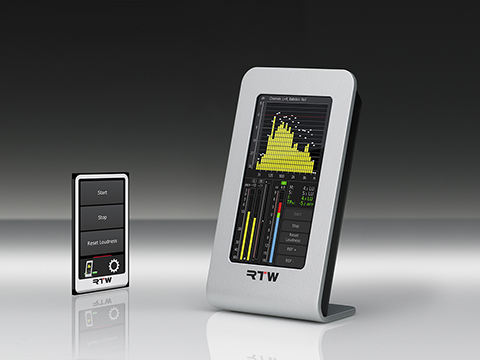

RTW USB Connect - Metering, Monitoring, Controlling

RTW USB Connect is a complimentary software expanding the field of applications for TM3-Primus with firmware version 1-02 or higher or MM3 MusicMeter. It supports the USB hybrid function of TM3-Primus or MM3 MusicMeter for direct access of audio signals from a DAW. Additionally, USB Connect provides remote control of the Start/Stop/Reset/Time/Ref+/Ref- functions without the need to define TM3-Primus or MM3 MusicMeter as a standard audio output device. The software is available for most of the common plug-in formats as well as stand-alone application for Mac® and Windows® systems.

Features

• Monitoring and metering at the same time.
• Plug-in operation for a direct audio connection between DAW and TM3-Primus or MM3 MusicMeter via USB Connect.
• Direct access of Stereo or 5.1 audio signals from the DAW without dropping the audio interface.
• No need to define TM3-Primus or MM3 MusicMeter as standard audio output device in the computer system.
• Remote control of start/stop/reset functions, time scale of Chart instrument, and reference of RTA of the directly connected TM3-Primus or MM3 MusicMeter via plug-in.
• Start/stop/reset loudness functions can be linked to the DAW transport cursor.
• Stand-alone operation
• Sampling rates up to 96 kHz

Software and Release Notes including further details can be found on the "Downloads" tab.
