Coiled mixer/camera loom, SD664/633, w/ TC, 2 breakouts, TRS

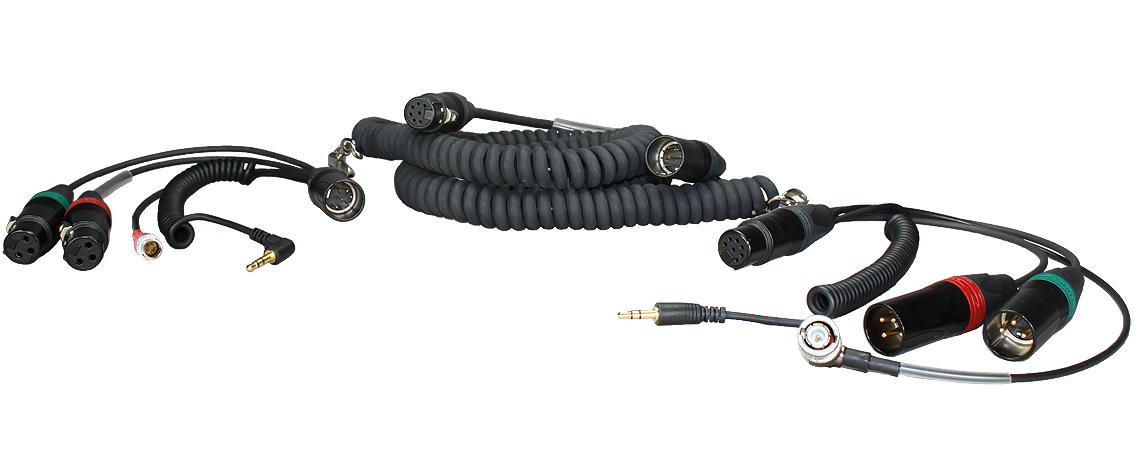

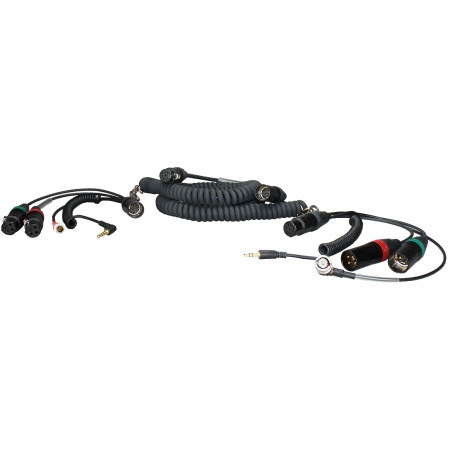

The HBS664Y-7-35 from Ambient Recording is a coiled breakaway cable set for the SD 664 Mixer. The mixer side cable is equipped with a Y-breakout cable that features 7-pin XLR male to dual 3-pin XLR female connectors, a mono return via 3.5mm TRS right angle, and a 5-pin Lemo (TC-OUT) connector for time code. The camera side cable is a Y-breakout cable with 7-pin XLR female to dual 3-pin XLR male connectors, and a mono return via 3.5mm TRS mini plug on a coiled cord with BNC right angle plug for time code from the camera to the SD 664 mixer. A 7-pin XLR female to 7-pin XLR male coiled breakaway cable is also included.
Overview
Coiled Breakaway Cable with Breakout Cable Sound Devices 664 / 633 mixer consisting of coiled breakaway cable (HBS7-7) 7-pin XLR female to 7-pin XLR male and two timecode breakout cable, mixer side (HBYATC-L-7-35W) and camera side (HBY7TC-35).
Mixer side:
7-pin XLR male to 2x 3-pin XLR female, return via 3.5 mm TRS plug right-angle on coiled cord and Lemo connector for timecode, return mono
Camera side:
7-pin XLR female to 2x 3-pin XLR male, return via 3.5 mm TRS plug on coiled cord and cable with BNC right angle for timecode from Sound Devices 664 / 633 mixer to camera, return mono
Alternatively:
Coiled Breakaway Cable with Breakout Cable Sound Devices 664 / 633 mixer consisting of coiled breakaway cable (HBS7-7) 7-pin XLR female to 7-pin XLR male and two timecode breakout cable, mixer side (HBYATCIN-L-7-35W) and camera side (HBY7TC-35).
Tech Specs
| Coiled breakaway cable (HBS7-7): |
| 7-pin XLR female to 7-pin XLR male |
| Breakout cable (HBYATC-L-7-35W): |
| 7-pin XLR male to 2x 3-pin XLR female |
| Return via 3.5 mm TRS right-angle plug on coiled cord and 5-pin Lemo for timecode |
| Return mono |
| Length approx. 30 cm |
| Breakout cable (HBY7TC-35): |
| 7-pin XLR female to 2x 3-pin XLR male |
| Return via 3.5 mm TRS plug on coiled cord and BNC right-angle |
| Return mono |
| Length approx. 30 cm |
| Breakout cable (HBYATCIN-L-7-35W): |
| 7-pin XLR male to 2x 3-pin XLR female |
| Return via 3.5 mm TRS mini right angle plug on coiled cord |
| Return mono |
| 5-pin Lemo (timecode / out) connector |
| Length approx. 30 cm |
