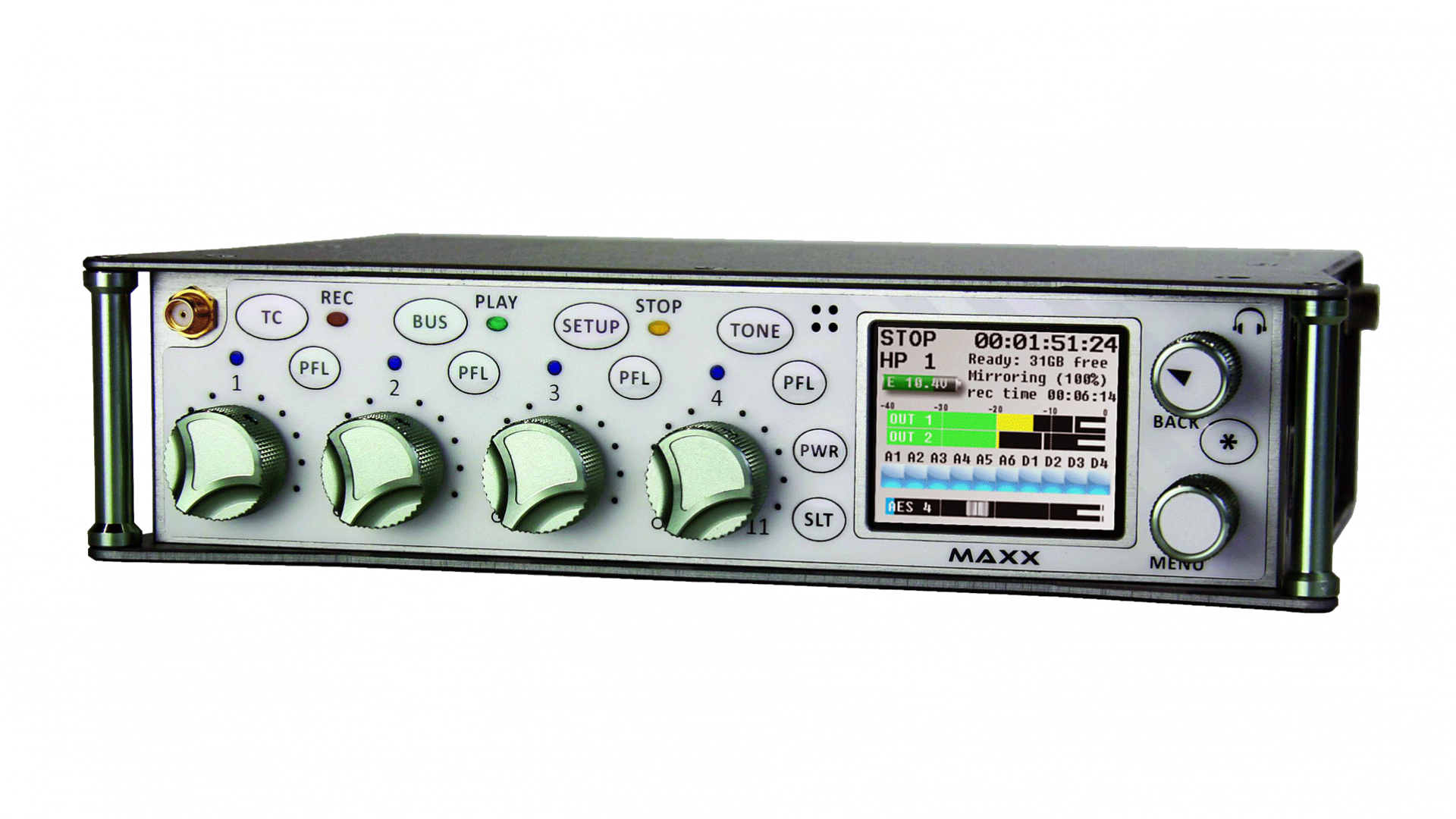

Maxx - Mixer with AES and 6-Channel recording
The Zax-Maxx has 6 analog inputs, 4 with mic pre amps featuring NeverClip™ and 2 AES digital inputs that can be used with AES42 microphones. All these inputs can be mixed into a two-channel output bus over two sets of output connectors that can be individually configured as line, mic and consumer output levels as well as a balanced mono and tape out. There are four AES direct outs + an AES stereo mix. The two-channel balanced camera returns doubles as balanced line level inputs.
Main Benefits
- Mixer: Do it yourself or let the 10-channel auto-mixer take over in the face of unscripted dialog
- Recorder: 8 Channels of audio with a dynamic range of 137dB in MARF and BWF on a single CompactFlash card, up to 4 of them at 192kHz
- Transmitter (Optional): A built-in UHF stereo transmitter sends audio and timecode to your QRX with 100mW of power
Description
Maxx comes standard with the ability to record eight track on a CompactFlash card. Files can be recorded at up to 24 bit / 192 KHz with a dynamic range of 137 dB.
The Maxx has an optional built-in RF camera link transmitter is ordered block specific, RF power output is adjustable up to 100 mW. It has a 24MHz wide RF band pass filter to eliminate interference to receivers in the sound bag.
Tech Specs

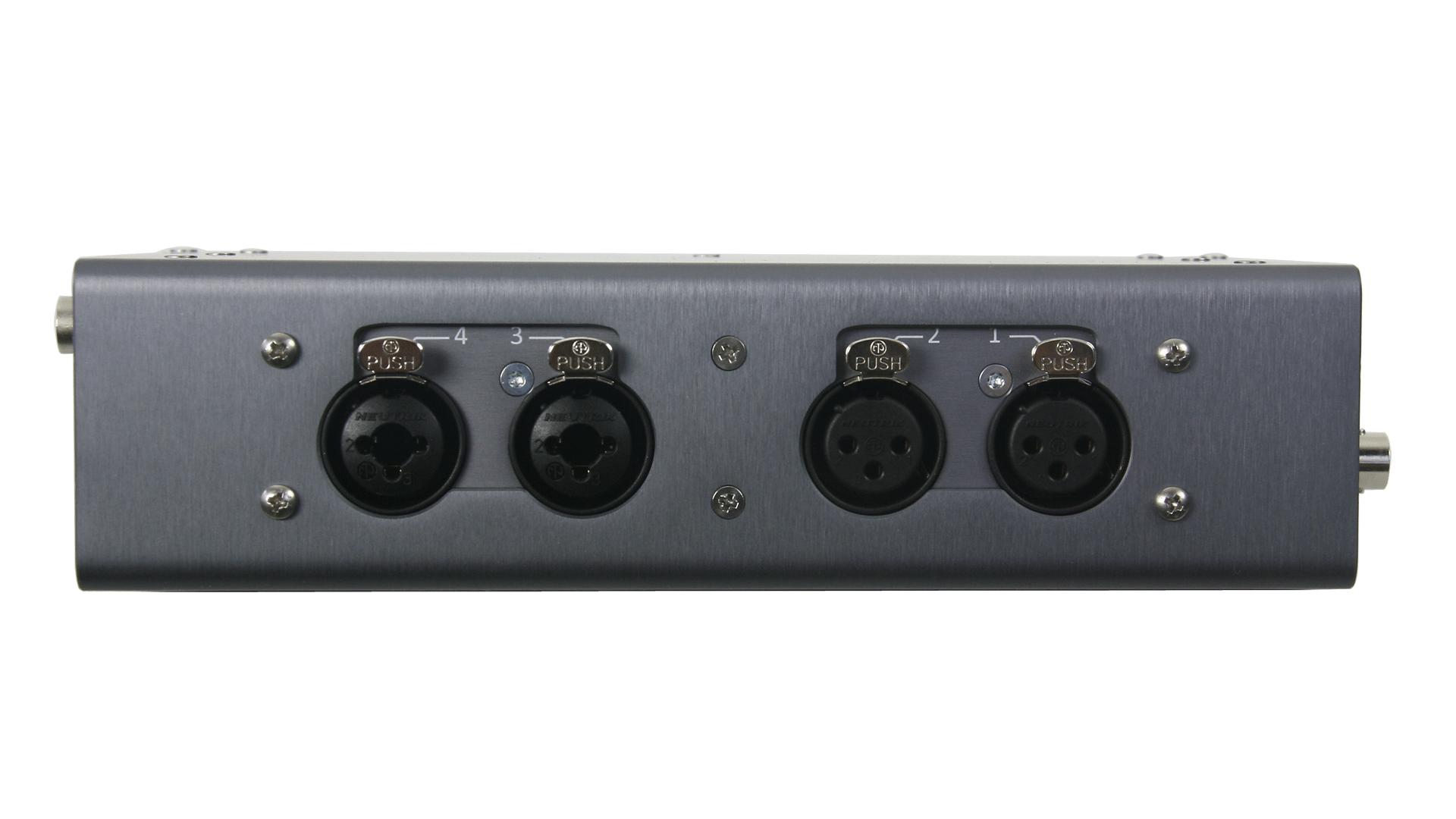

- Analog In
- Analog inputs: 4 Mic/line-level with 48V phantom power and 2 line-level (camera return only)
- Connector: 4 x XLR-3F (2 with .25” jack)
- Mic level input range: -56 to -26 dBu
- Line level input range: -10 to +8 dB
- Distortion: 0.0015%
- ADC bit-depth: 24 bits
- Dual ADC input dynamic range: 137 dB with NeverClip™
- Clipping level: +28 dBu
- Frequency response: 28** Hz to 22 kHz (48 kHz sampling-rate)
- THD + noise: 0.0015%

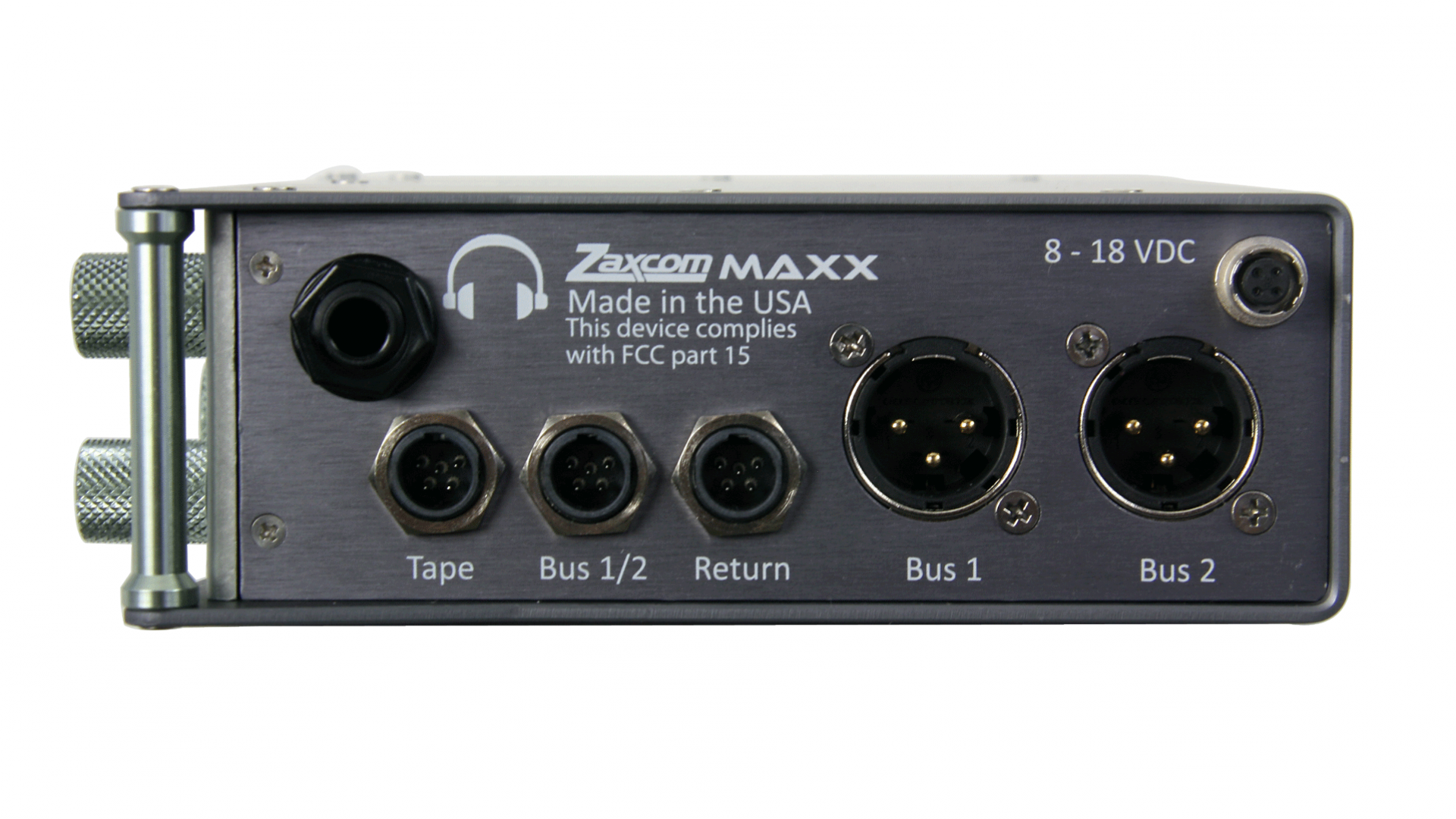

- Analog Out
- Analog outputs: 2 Balanced XLR, 0dBu, -10dBu and -30dBu
- 1 Balanced TA5 (2 bus) 0dBu, -10dBu and -35dBu
- Tape/mono output: 2 balanced TA5, 0dBu, -10dBu and -30dBu
- Headphone 1: 1/4 inch stereo bus
- Output level: 0 dBu @ -20 dBFS
- Clipping level: +20 dBu
- DAC Bit-depth: 24 Bits
- DAC Dynamic Range: 115dB
- Impedance: 30 ohm

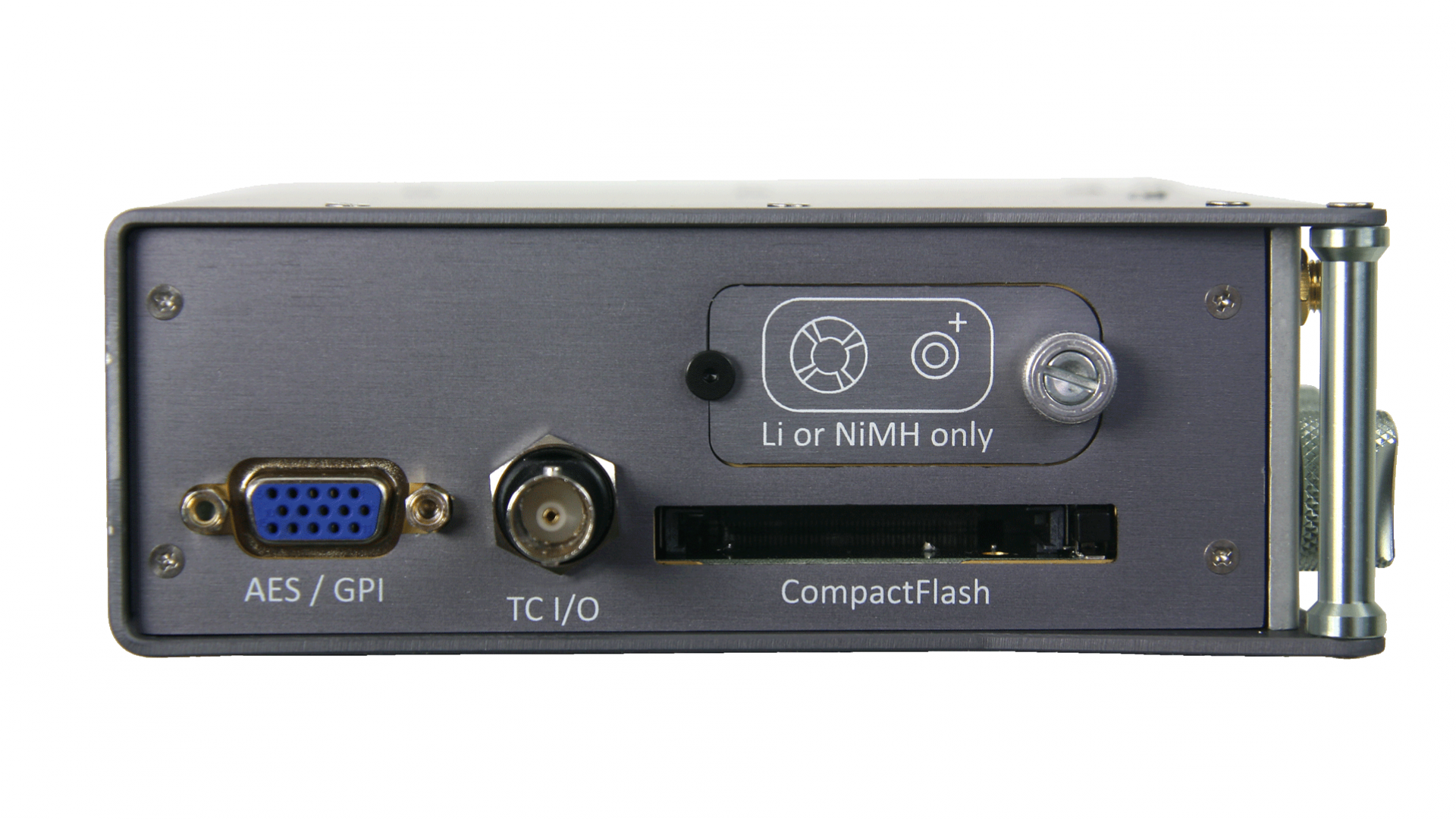

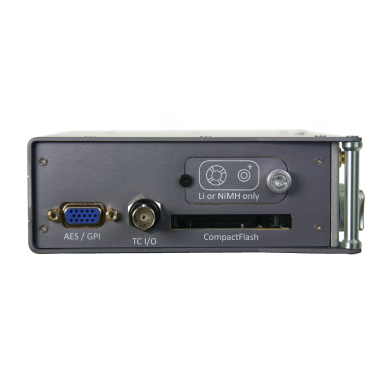

- Digital In/Out
- Channel count: 2 AES or AES42 pairs (4 channels)

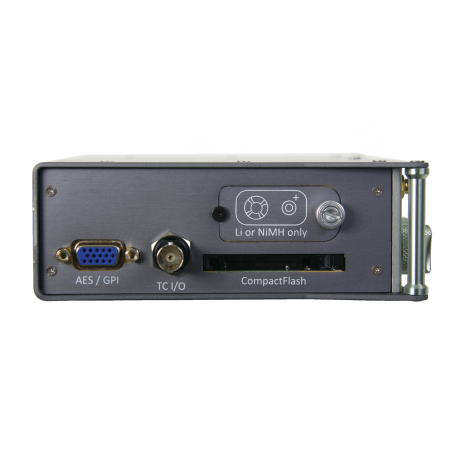

- Connector: DB-15 mini (DE-15)
- Source: Mix/Direct
- AES Sample rate conversion: 32-96 KHz
- Transmitter - optional
- Power Output: 10 / 50 / 100 mW – Software Selectable
- RF Modulation: Proprietary Digital Method
- RF Frequency Range: 518.0 to 850.0 MHz (Typical Blocks are 24 MHz wide)
- RF Frequency Step: 100 KHz
- RF Bandwidth: 200 KHz
- Channel Separation: 500 KHz (700 KHz recommended)
- Antenna Connector: 50 Ω SMA Female
- Emission Designator: 180 KV2E
- FCC Part: 74.861
- Recording
- Track count: 8
- Bit-depth (primary card): 24 bits
- Bit-depth (mirror card): 16 / 24 bits
- Sample rates (kHz): 44.1, 47.952, 48, 48.048, 96,192
- (192 4-track maximum)
- Head room: 20 to 44 dB
- Format: MARF II, .BWF
- Max Pre-record duration: 5 seconds
- Data Storage
- Internal: Compact Flash
- External: None.Internal Mixer
- Mixer Type: 32 bit floating point DSP
- Mixer Cross Point: 8 input x 4 output (Pre-fader / Post-fader / Phase Inversion)
- A-D / D-A resolution: 24 bit
- Head room: Selectable 12 to 20 dB
- Effects
- Delay: 0 to 60 mS in .1mS steps
- Notch filter: 2 band, 20 Hz to 20 kHz frequency range adjustable
- Compressor type: soft knee with side chain
- High Pass Filter: 20 Hz to 230 Hz
- Timecode Reader/Generator
- Timecode type: SMPTE
- Connector: BNC
- Input Voltage: 1-4VPP
- Output Voltage: 2VPP
- Clock Accuracy: 1.54 PPM (1 frame out in 6 hours)
- Timecode Frame-rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
- Power
- Internal: 6AA 7-9 VDC, 4 hours of usage (NiMH)
- External: 8 to 18 VDC
- External Power: 8 to 18 VDC ( 12V @260mA)
- Power Connecter: Hirose
- Battery Meter: Yes, on LCD display
- Physical
- Size (H x W x D) 2.0″ x 7.5″ x 5.25″
- Weight: 2.5 pounds
- Misc.
- Display: Full color sunlight readable LCD
- Meters: Output / Input / Card
- Slate Mic: Internal
