MK1-90
Micr. cable (PER2x 0.25S), XLR-3F/90° to XLR-3M, length 1.0
Description
Our high quality microphone cables are produced in any required length.
They are extra thin and flexible, thus carrying less physical noise.
Thanks to their poly urethane coating they remain flexible even in very low temperatures.
The braided shield takes care of optimum protection from EM or HF interference.
3-pin XLR female to 3-pin XLR male
Flexible microphone cable with braided screen, non-crush, breaking resistant, cold resistant, easy spooling and unspooling, Ø 3,8 mm

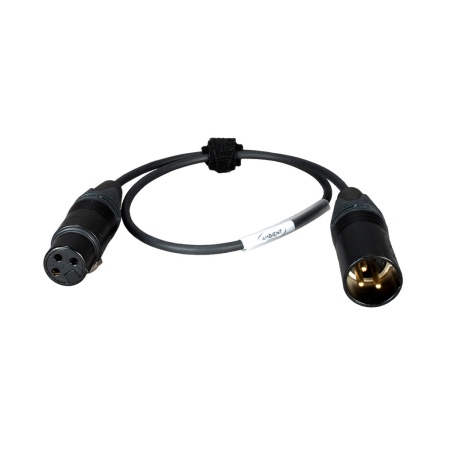

Pictured is the microphone cable with length of 50 cm (MK0.5)
Tech Specs
| 3-pin XLR female to 3-pin XLR male |
| Peridax cable |
| Braided screen |
| Diameter: Ø 3,8 mm |
| Technical Description: |
| Conductor: tin-plated stranded copper conductor |
| Isolation: perimer |
| Stranding: 2 (4) stranded insulated wires |
| Overall shielding: tin-plated copper wires |
| Sheath: peripur |
| Color: black |
| Mechanical features: |
| Range of temperature: |
| Fixed usage | - 40°F up to + 176°F |
| Flexible usage | - 13°F up to + 176°F |
| Bending radius: |
| Fixed usage | 6x outer diameter |
| Flexible usage | 8x outer diameter |
Versions
MK0.3
|
XLR-3F > XLR-3M |
30 cm |
MK0.5
|
XLR-3F > XLR-3M |
50 cm |
MK0.5-90
|
XLR-3F > XLR-3M 90° |
50 cm |
MK0.5-90K
|
XLR-3F 90° kurz > XLR-3M |
50 cm |
MK1
|
XLR-3F > XLR-3M |
1 m |
MK1-90
|
XLR-3F 90° > XLR-3M |
1 m |
MK2
|
XLR-3F > XLR-3M |
2 m |
MK3
|
XLR-3F > XLR-3M |
3 m |
MK4
|
XLR-3F > XLR-3M |
4 m |
MK5
|
XLR-3F > XLR-3M |
5 m |
MK6
|
XLR-3F > XLR-3M |
6 m |
MK7
|
XLR-3F > XLR-3M |
7 m |
MK8
|
XLR-3F > XLR-3M |
8 m |
MK9
|
XLR-3F > XLR-3M |
9 m |
MK10
|
XLR-3F > XLR-3M |
10 m |
MK12
|
XLR-3F > XLR-3M |
12 m |
MK12-90
|
XLR-3F 90° > XLR-3M |
12 m |
MK15
|
XLR-3F > XLR-3M |
15 m |
MK20
|
XLR-3F > XLR-3M |
20 m |
MK25
|
XLR-3F > XLR-3M |
25 m |
MK30
|
XLR-3F > XLR-3M |
30 m |
