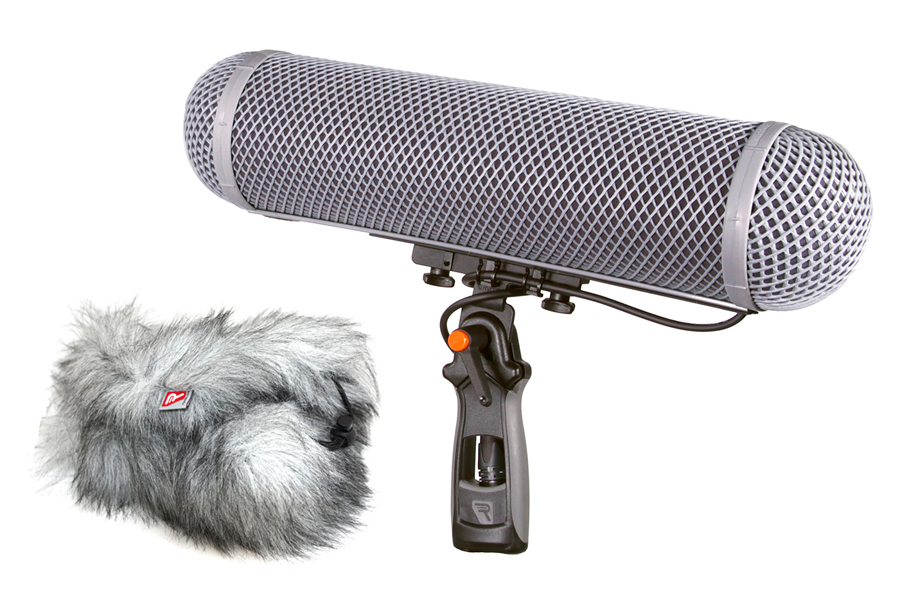

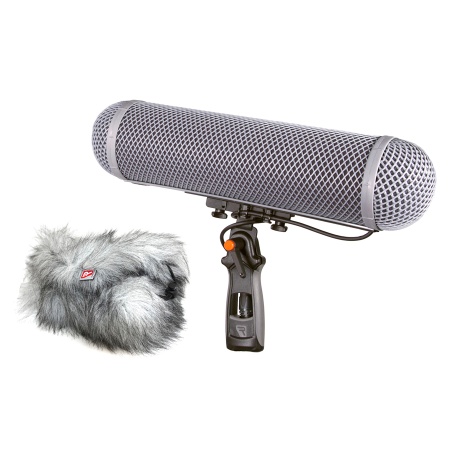

Moduláris szélvédő-készlet (4-es méret) Rycote

A Modular Windshield Kit a szakemberek választása, amikor szükséges a szél- és kezelési zajtól való maximális szigetelés.
This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.
A Modular Windshield Kit az alábbi három fő részből áll: Modular Suspension, Modular Windshield és Windjammer.

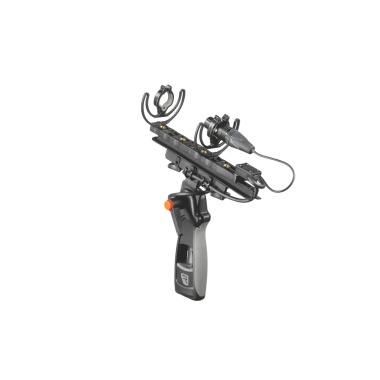

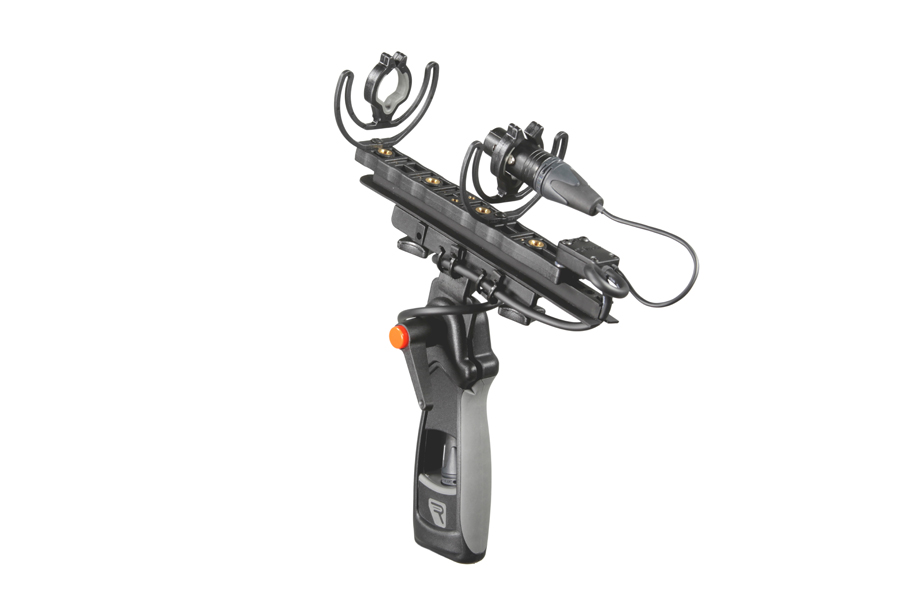

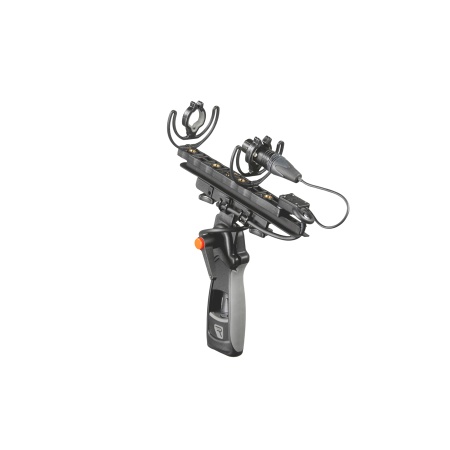

Modular Suspension
Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

Windshield
The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

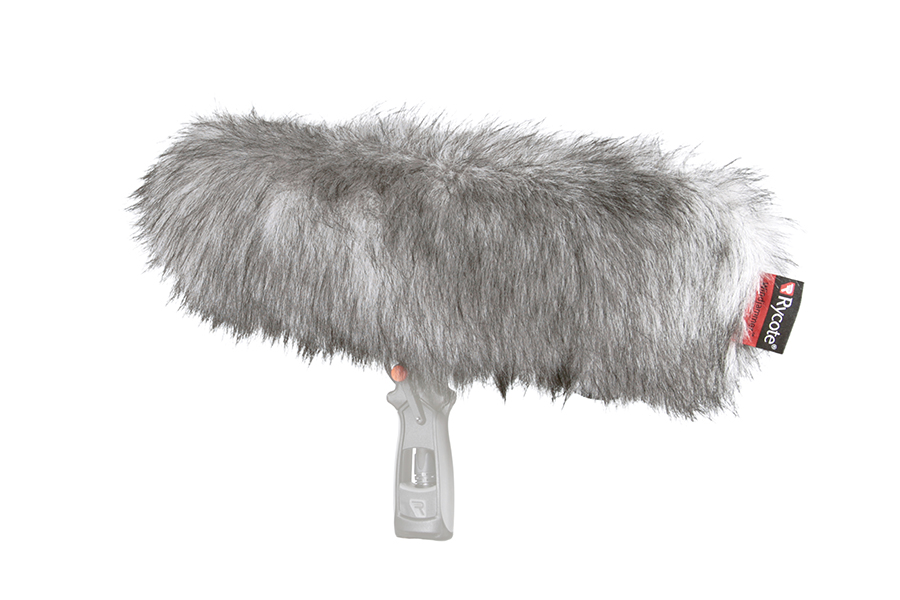

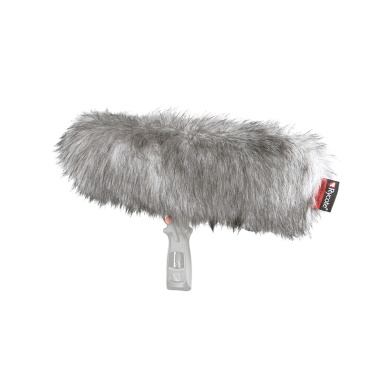

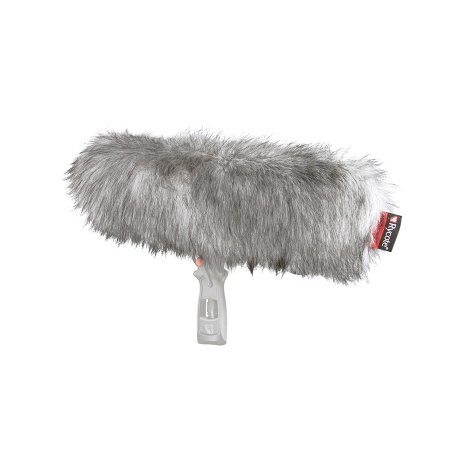

Windjammer
The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.

Windshield Body Length: 330mm
Total Windshield Length: 440mm (includes the End Caps)
Height of Windshield: 100mm
Net Weight: 0,7kg
Gross Weight: 1.46
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey

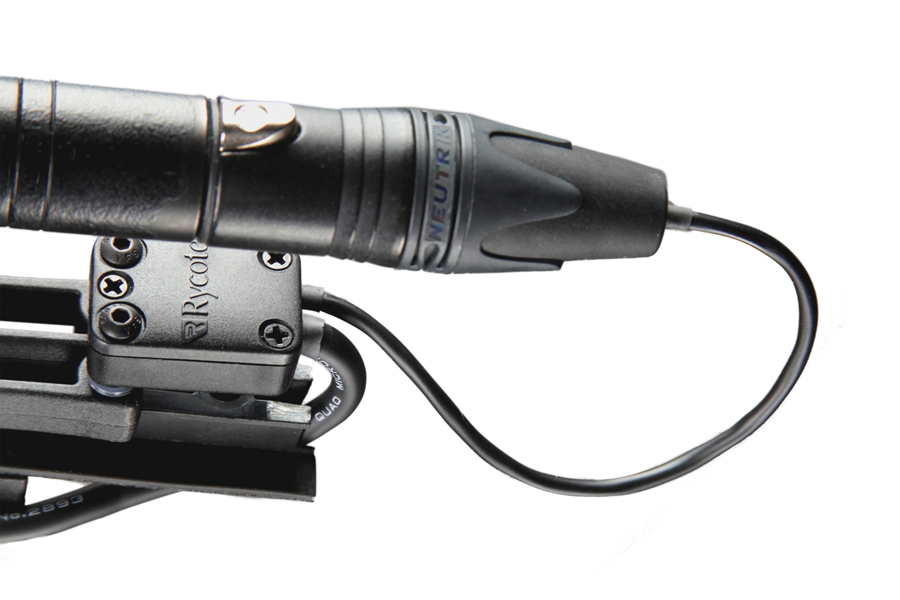

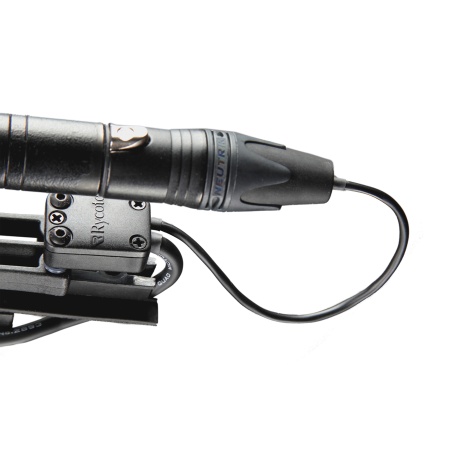

Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB

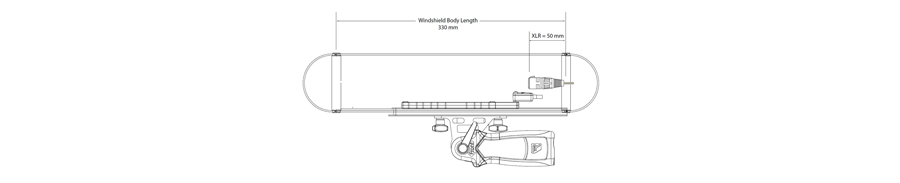

Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.

Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.

For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.

Modular Windshield Kit.pdf
Modular Windshield Kit

Modular Windshield Kit_08_14.pdf
Modular Windshield Kit (update 08_14)

WS4Kit_086001_040146.pdf
Spares for the Modular Windshield 4 Kit (086001)
