Modular Windshield WS 9 Kit (LEMO) Rycote

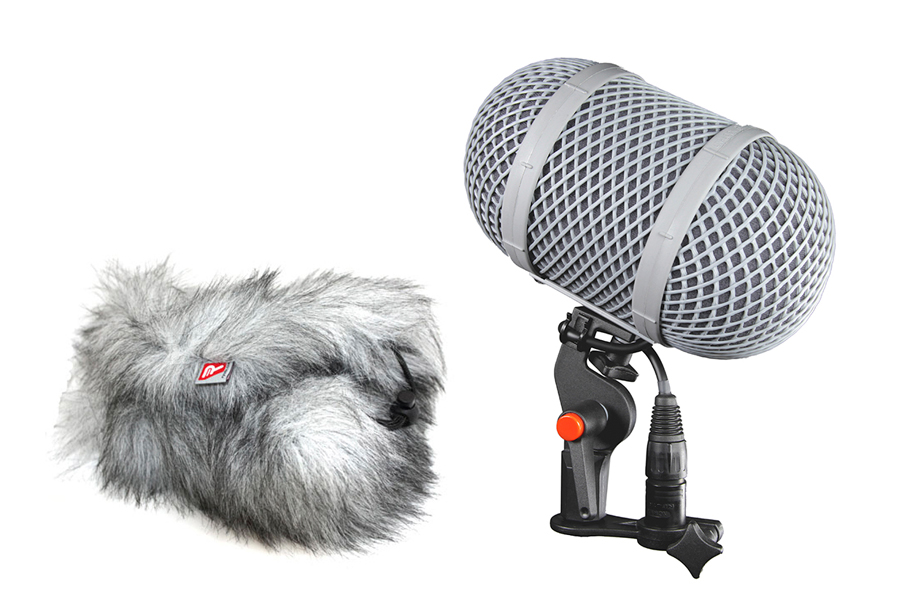

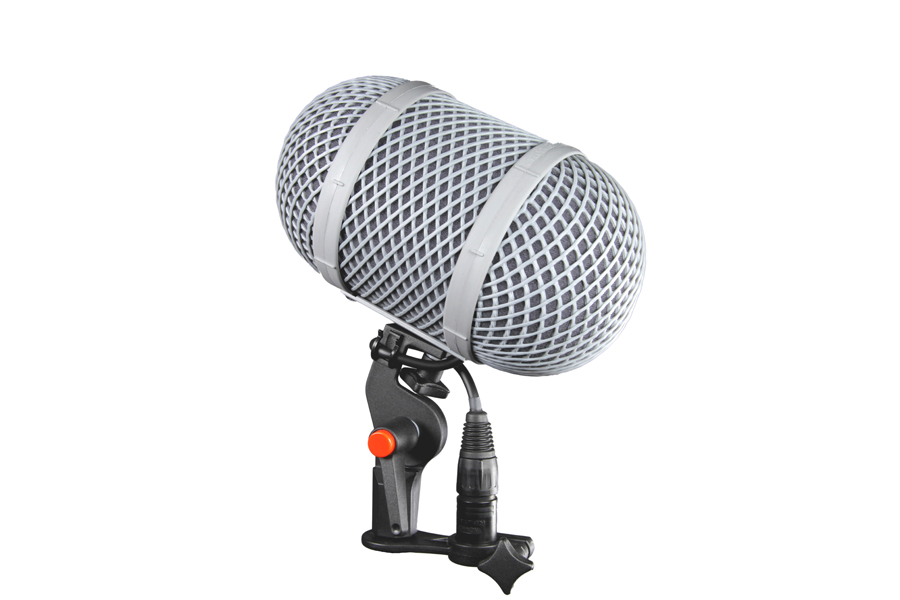

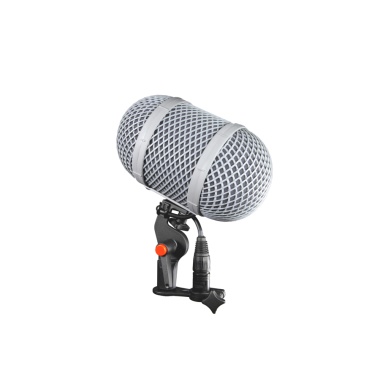

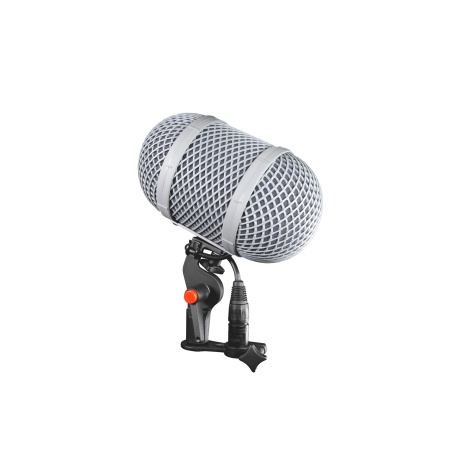

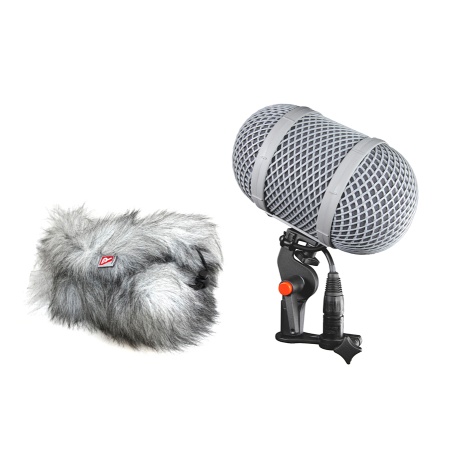

The Modular Windshield WS 9 Kit offers a unique and highly effective solution for compact condenser microphones requiring wind protection and maximum shock isolation. It completely surrounds the compact microphone, sliding onto the XX-Small Suspension to provide up to 25dB of wind noise attenuation. The wind attenuation performance is equivalent to a Rycote full sized Windshield yet in a much smaller and lighter package – only 170mm x 105mm including end caps.

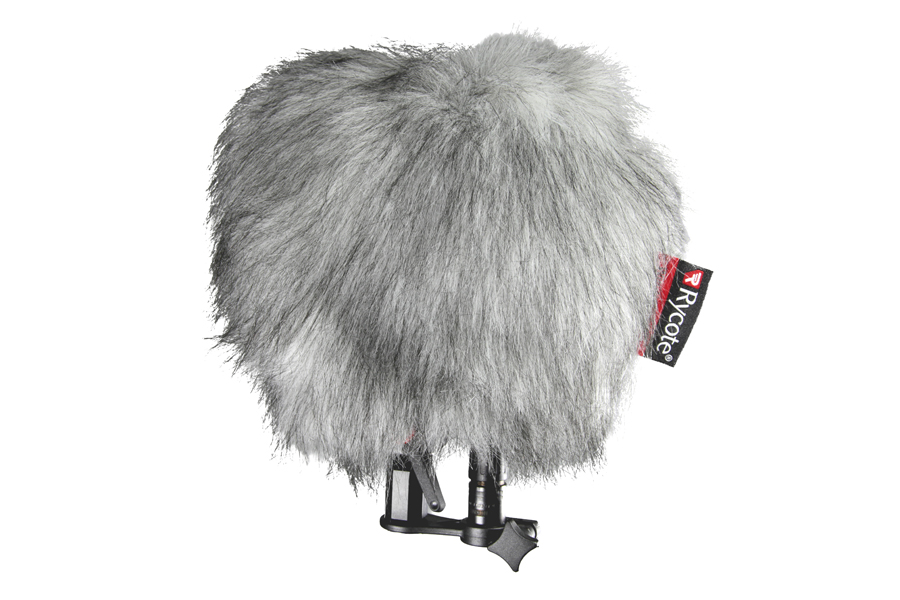

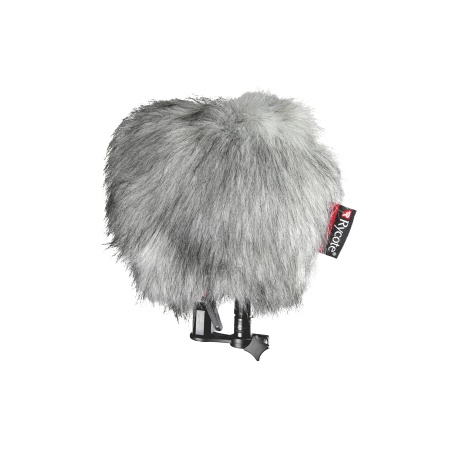

High quality synthetic fur-cover Windjammer for WS 9 provides the highest possible protection against extreme wind-noise. When using a Windjammer fitted over a Windshield up to 35 dB of windnoise attenuation can be achieved, producing excellent exterior audio recordings.

Windshield Body Length: 70mm
Total Windshield Length: 170 mm (includes the End Caps)
Height: Windshield 100mm
Net Weight:
Gross Weight:
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: LEMO
Max Wind-noise Attenuation: 35 dB

Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.

Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.

For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.

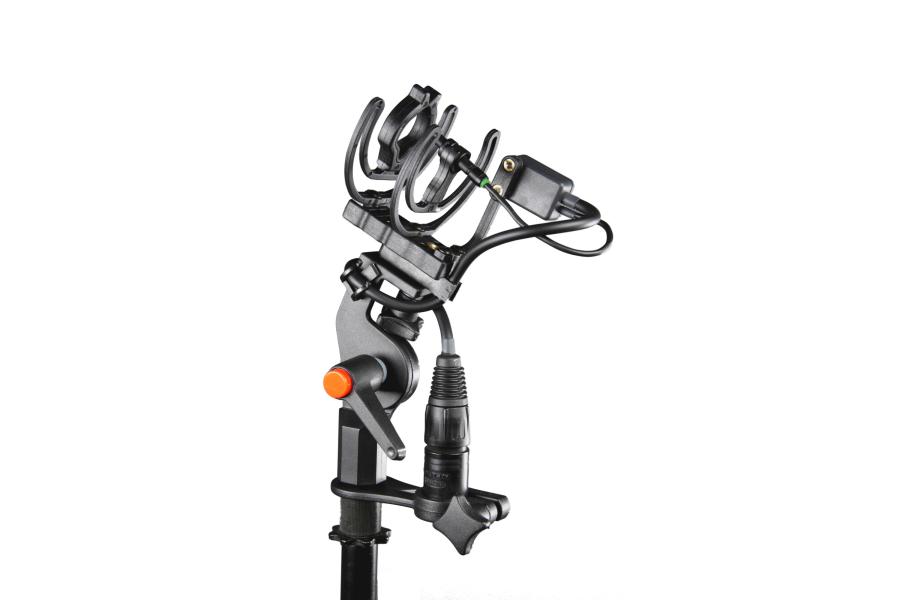

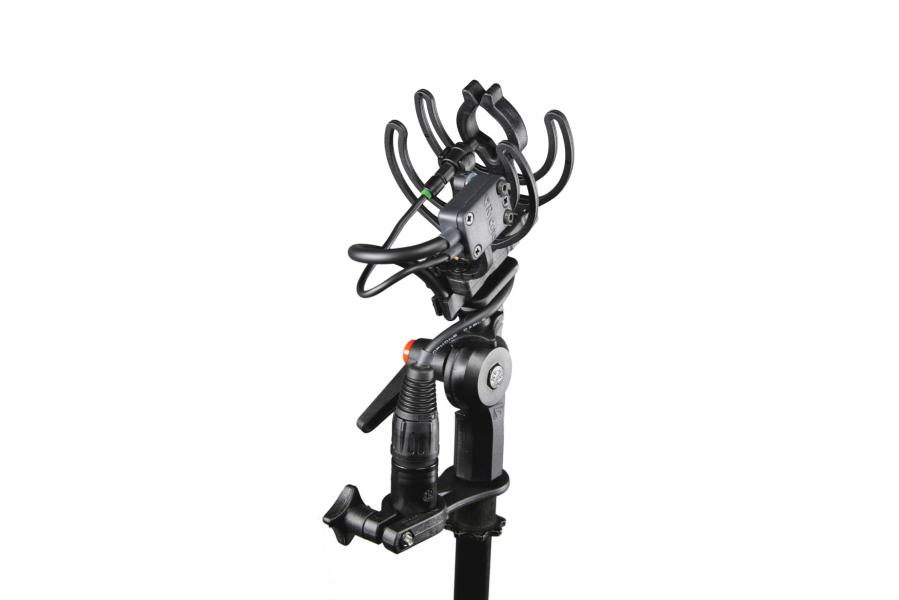

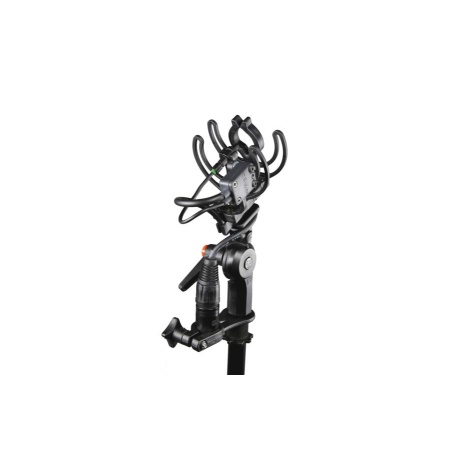

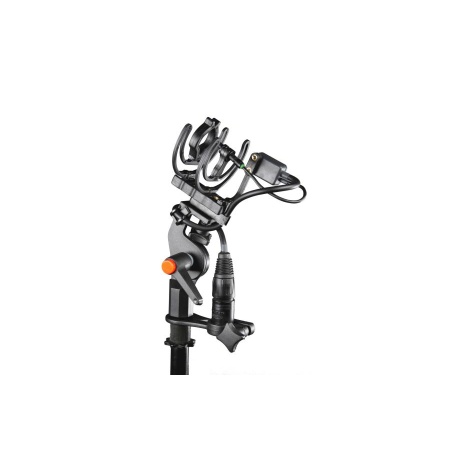

	1 x Suspension XX-Small (Lemo) Product Code: 040114 Suitable for Schoeps CCM Lemo in a WS9
	1 x Connbox CB10 (LEMO) Product Code: 016918 Suitable for single Schoeps CCM Lemo.
	1 x Windjammer WJ 9 Product Code: 021509 Suitable for use with the Windshield 9
	1 x Windshield WS 9 Product Code: 010605 Suitable for compact condenser mics
	1 x XLR Holder MK II Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system
	1 x Boom Poles Adaptor Product Code: 048402
	1 x Pistol Grip Handle with Lever Product Code: 048401

1x Single Lyre 62 (19/25)
1 x Single Lyre 62(8)
Brush
Hex head key
