TouchMonitor TM3:
4.3 inch Stereo TouchMonitor as desktop unit with display unit (capacitive touch screen), remote interface box (2 m)and mains adapter.Analog Stereo RCA input (150 mV to 25 V unbalanced and adjustable) or 25-p Sub-D (balanced +4/+6 dBu), digital in-/output via RCA (SPDIF) and AES3 in-/output via 25-p Sub-D.USB 2.0 device interface, GPIO interface, 24 V DC connectorStereo software: Peak, True Peak, correlation, Loudness (EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer), LRA, SPL.Comprehensive set of presets, easy recall.Optional: External PC software (Devicer DC1) for preset confi-guration, 2U mounting (with TM3-2U), software licencesTM3-SW6UPG, TM3-SWMC, TM3-SWTCR, TM3-SWB1 forexpansion (see below)For 19"/2U rack mounting, the 2U mounting option TM3-2Ushall be ordered simultaneously (Order no.: TM3 + TM3-2U)
Main Benefits:
- 4.3“ Touch screen for vertical or horizontal use
- Flexible display layout with scalable instruments
- Separate interface box with audio I/O, USB, GPIO
- Audio: analog balanced or unbalanced, S/PDIF, AES3
- Stereo operation
- Retrofitable software licence for 6-channel measurements
Description
Loudness Simplified: Professional Loudness, True Peak and PPM metering at an affordable price with easy and flexible preset control.
The compact TouchMonitor TM3 comes with a capacitive 4.3“ touch screen and intuitive preset control at an affordable price. With its feature list, it is the ideal solution for editorial offices, edit suites, small control rooms, and all applications with the need of easy readable loudness-compliant level control.
The Unit

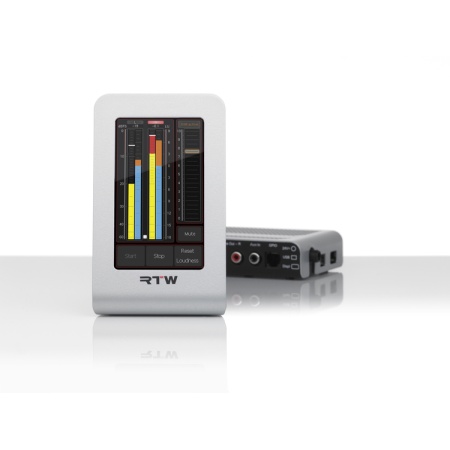

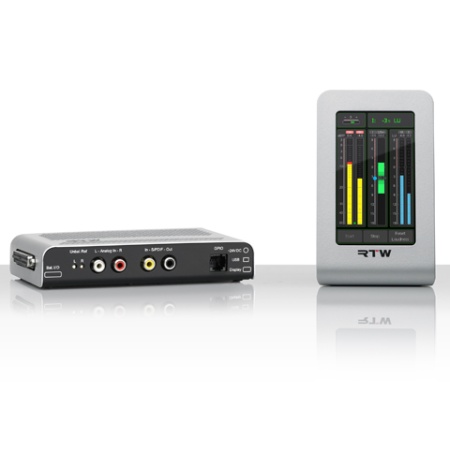

TM3 consists of a display unit for vertical or horizontal use and a remote interface box. It handles analog or digital stereo signals. TM3‘s flexible user interface allows the selection of up to 10 presets quickly and simply with just a finger swipe. The contained factory presets present a cross-section of the applications, audio connections and standards and allow you to start working right out of the box.
The Devicer Software
When it comes to configuring local presets using the Devicer DC1 software application (Windows® and Mac OS X® compatible), the TM3‘s power and flexibility really shines. Existing presets easily can be personalized and adapted to individual needs. Furthermore, Devicer DC1 allows to create several configuration sets with different presets, which may be uploaded to TM3 as required. (Devicer DC1 is available for free in the Audio Monitors/TouchMonitor TM3 section of members area (Manuals & Software)). Purchase and activation of software licences can also be managed with the Devicer.
The Instruments
Besides PPM and True Peak instruments, the TM3 features comprehensive loudness measuring features conforming to all relevant international standards (EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act). Loudness instruments include single-channel and summing bargraphs, loudness range and numerical displays.
Software Licences
Depending on individual needs, further instruments can be added to TM3 with the activation of corresponding software licences. Also, a software bundle can be purchased as a licence upgrade for activating all licences and for expanding the completed feature set with the Loudness Chart instrument. When the software bundle has been installed, upcoming instruments and functions can be added via firmware update.
For existing units the firmware is available for download. See the Audio Monitors/TouchMonitor TM3 section of members area (Manuals & Software).
- 4.3“ Touch screen for vertical or horizontal use
- Flexible display layout with scalable instruments
- Separate interface box with audio I/O, USB, GPIO
- Audio: analog balanced or unbalanced, S/PDIF, AES3
- Stereo operation
- Retrofitable software licence for 6-channel measurements
- Licence option for Moving Coil instruments
- Loudness: EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specific
- Single channel and summing loudness bargraphs
- Loudness Test Time Control
- Loudness range (LRA) with MagicLRA
- PPM & True Peak
- SPL & Dialnorm
- Correlation
- Numerical display
- Licence option for Timecode Reader
- Comprehensive set of presets
- Personalization with Devicer DC1
The Device Configurator software for Windows® and Mac OS X® is available in the Audio Monitors/TouchMonitor TM3 section of members area (Manuals & Software).
- Licence upgrade with all available licences plus Loudness Chart instrument
Tech Specs
The table-top unit TouchMonitor TM3 consists of a display with fixed cable for data exchange and supply voltage and a remote interface box with processor and connectors.
Hardware
- Display Unit (Screen)
- 4,3" capacitive touch screen
- Flexible screen layout with scalable instruments
- Vertical or horizontal operation
- Fixed cable (approx. 2 m)
- Dimensions: 82.5 x 138 x 50 mm (B x H x T)
- Interface Box (Connection Options)
- Analog Stereo input (channels L and R) via 2 x RCA (unbalanced), with potentiometers adjustable from 150 mV to 30 V or
analog Stereo input (channels L and R) via 25-pin Sub-D (balanced), +4/+6 dBu, with software adjustable from 0 to +10 dBu
Cannot be used in parallel!
- S/PDIF input via RCA and output via RCA (unbalanced, 75 ohm)
- 3 digital AES3 inputs and 3 digital outputs via 25-pin Sub-D (balanced, 110 ohm)
- Full speed USB 2.0 connection vis USB Mini-B socket for data exchange between TM3 and Devicer DC1
- GPIO connection via RJ-12 (6P6C) socket
- Locking 4-pin low voltage connector (type Binder 710) for power supply
Basic Software (Display Options)
expandable with licence options (see "Options" tab)
- Loudness metering acc. to EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, or customer specific
- Bargraphs for single channel and summed Loudness display
- Loudness Range (LRA) with "MagicLRA"
- Numerical Loudness display
- SPL meter
- Peak, True-Peak, and correlation measurement
- Comprehensive set of presets (personalizing with Devicer DC1)
Versions
- TM3
- 2-channel Stereo version
- Basic software
- Display unit and interface box
- Input sources alternatively selectable
- a maximum of 2 input channels can be displayed at a time
- Mains adapter included
Software Modules
With the software module (licence) you are able to expand the functionality of your TouchMonitor according to your individual needs.
- TM3-SW6UPG: 6-channel upgrade
Software licence for upgrading TM3 for 6-channel processing (2-Kanal-Stereo, Mehrkanal, 5.1). Input sources alternatively selectable, a maximum of 6 input channels can be displayed at a time.
- TM3-SWMC: Moving Coil
Software licence for expanding the feature set of TM3 with the Moving Coil instrument for the display of needle instruments.
Functions: L/R and M/S PPM modes (BR IIa/BR IIb scales), VU mode, Loudness mode, dual or single (stereo) displays horizontal or vertical, a combined mode with Dual-PPM and Loudness sum display (BBC) is also available.
- TM3-SWTCR: Timecode reader
Software licence for expanding the feature set of TM3 to allow external LTC timecode signals to be decoded, displayed and used.
Functions: LTC timecode reader and display of an external analog or digital source.
- TM3-SWB1: Software bundle (licence upgrade)
Software bundle for expanding TM3 with all licences available for the respective unit and for expanding the completed feature set with the Chart instrument. When a software bundle has been installed, upcoming instruments and functions can be added via firmware update.
Upgrade functions: completely equate to the licences described above.
Loudness Chart instrument functions: graph with course over time of one of the measured loudness values TP, M, S, or I, switchable Relative Gate view, adjustable time ranges, switchable Integrated bargraph, adjustable tolerance levels.
Instruments
Every TM3 comes with a comprehensive basic software package including all relevant measuring tools and instruments for the immediate use in many applications. For specific demands, the feature set can be expanded with software modules (licences).
PPM
2-channel PPM and TruePeak meter for 2 channels with comprehensive set of analog and digital scales, Peak Hold, Peak Memory, Over indicator, numerical display, additional Loudness bargraphs switchable. Additional control keys for positioning on the display.
Correlator (available in 2-channel mode)
Stereo Correlator for displaying the phase relationship between the two channels of a stereo signal and thus its mono compatibility. Additional control keys for positioning on the display.
Loudness Sum
Loudness Sum instrument for displaying the summed loudness values M, S, and I of a loudness measurement acc. to EBU R128,
ITU BS.1770-3/1771-1, ARIB, ATSC A/85, OP-59, AGCOM, CALM Act or customer specific on bargraphs, or an SPL meter. Additional control keys for positioning on the display.
Loud. Num.
Loudness Numeric instrument for the numerical display of all relevant values of a Loudness measurement: M, S, I, LRA, TPmax, Mmax, Smax, I-time. Additional control keys for positioning on the display.
LRA
Loudness Range instrument with MagicLRA mode for a graphical representation of loudness variances with additional display of the I value. Adjustable ranges with different colors. Additional control keys for positioning on the display.
AES Status
AES Status monitor for displaying various parameters of AES3 digital audio signals in plain text. Additional control keys for positioning on the display.
Global Keyboard
Global Keyboard with definable on-screen keys for simultaneous control of defined functions in multiple instruments, and for preset recall. It also allows external control vial GP IO interface.
Software Module TM3-SW6UPG
6-Channel PPM
PPM and TruePeak meter for up to 6 channels with comprehensive set of analog and digital scales, Peak Hold, Peak Memory, Over indicator, numerical display, additional Loudness bargraphs switchable. Additional control keys for positioning on the display.
Dialnorm
The Dialnorm instrument is used to calculate and to show numerical Dialnorm values (w/o speech intelligence) from digital surround signals. Additional control keys for positioning on the display.
Software Module TM3-SWTCR
Timecode Reader
The Timecode Reader instrument is used to decode and to display an LTC timecode of an external analog or digital source for the use with Loudness applications.
Moving Coil
2-channel stereo needle instruments with PPM display (British), VU display, Loudness display, and combined PPM and Loudness display (BBC mode). Additional control keys for positioning on the display.
Software Bundle TM3-SWB1
Licence upgrade for TM3 (2-channel version) includes all instruments of licences TM3-SW6UPG, TM3-SWTCR, and TM3-SWMC, and additionally the Loudness Chart instrument.
Loudness Chart
Loudness Chart instrument for displaying and analyzing the course over time of one selectable value of a loudness measurement directly on the display. Additional control keys for positioning on the display.
Further details can be found in the TM3 data sheet (see "Download" tab).
Images
Instruments can be scaled, randomly positioned and combined.

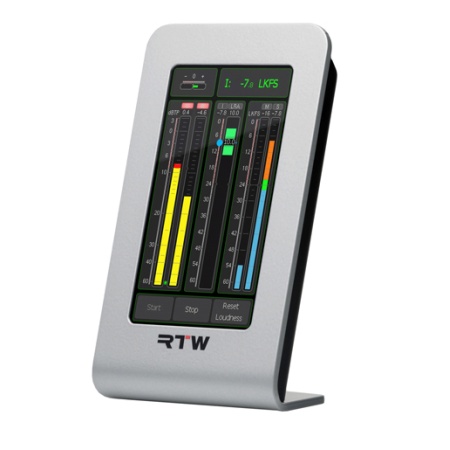

This example shows a combined Loudness Meter and Peak Program Meter (left), Loudness Range (LRA) instrument in MagicLRA mode with Integrated (I) Loudness bargraph and graphical display of the Loudness Range (right), and control buttons for the Loudness measurement (below). This combination may be useful for Loudness measurements of many Stereo applications.
This picture shows an example for horizontal operation of the stereo version: Above on the left the Loudness Range (LRA) instrument in MagicLRA mode with Integrared bargraph and graphical Loudness Range display is running. An additional numerical display of the Integrated bargraph is on the left. Below left is the PPM with ARD+9 scale running. Below on the right the control buttons for the Loudness measurement is placed.
This example shows an arrangement of a multichannel application: On the left a True Peak Meter is displayed with its numerical display of the Integrated Loudness value above. On the right there is a digital peakmeter with its numerical display of the Integrated Loudness value above. Jointly used control buttons for the Loudness measurements are located at the bottom.
This example shows VU needle instruments in vertical orientation which can be displayed with the activated Moving Coil licence. As other modes, Stereo or dual needle instruments with British IIa resp. British IIb or Loudness scales are selectable.
This example shows in horizontal orientation the combined PPM and Loudness mode (BBC mode) of the activated Moving Coil licence. On this instrument, a third, cyan-coloured needle below the needles for the stereo signal shows one of the three summed loudness values M, S, or I on a separate scale. It is helpful for the intuitive display of loudness being on target.
With horizontal finger swipes it is easy to scroll through the available presets and to select the one meeting the needs of your application. Just touch the "Start" button to load and activate the preset.
TM3 may be operated in horizontal orientation. Swipe vertical across the display of the upright standing unit and counter-clockwise rotate it. Then you also can scroll through the available presets with horizontal finger swipes and select the one you need. Just touch the "Start" button to load and activate the preset for horizontal operation.
The TM3 recognizes the wipe orientation (lengthwise or crosswise) in order to switch between vertical and horizontal display modes. It doesn‘t use a motion sensor for this.
With Devicer DC1 software for Mac OS X® and Windows® the existing presets may be adapted to individual needs. All settings are made with the software on the computer screen. An animated preview is also displayed. After being uploaded to TM3 and being activated, the adapted presets are available for operation.
This image shows a TouchMonitor TM3 with panel-mount option TM3-2U (display with mounting frame) in front of an optional available 19"/2U rack carrier/mounting frame TM3-MA2U (see Options tab).
