PowerStation-8M

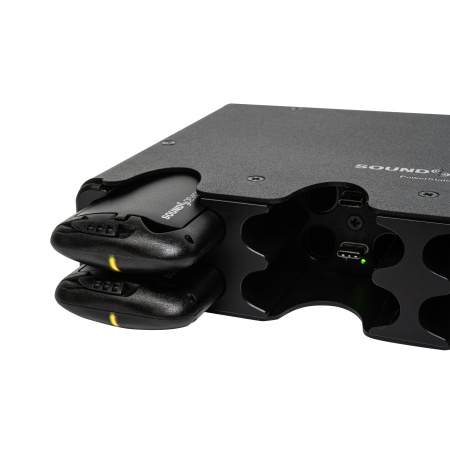

The PowerStation-8M provides easy battery charging, file transfer, and timecode jamming of up to eight A20-Minis at a time. Powered via AC, DC or USB-PD.
Overview
Included Accessories
- Power Supply
- 2x USB-C to USB-C Cables, USB 3.0
Tech Specs
| Power |
- USB-C: PD (Power Delivery), 36 W or higher, or
- TA-4: 10 – 18 VDC, 36 W or higher
- Pin-4 hot, pin-1 ground, pin-2 and pin-3 data for smart batteries. Leave pins-2 and pin-3 disconnected if not using smart batteries.
|

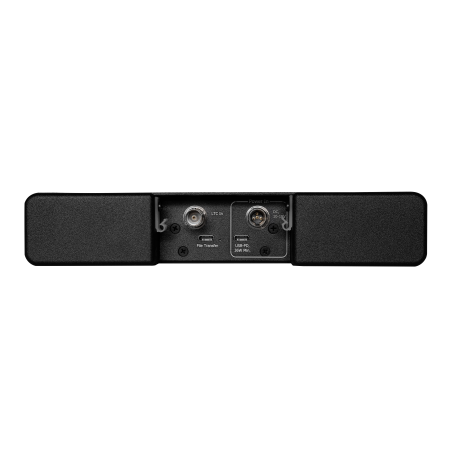

| LTC Input |
- Input impedance: 5k ohm
- Signal level: 0.3 – 5 Vp-p
|
| USB-C |
- USB 3.0 SuperSpeed, internal hub
|
| Dimensions |
- 40 mm x 220 mm x 136 mm (without feet)
|
| Weight |
|
