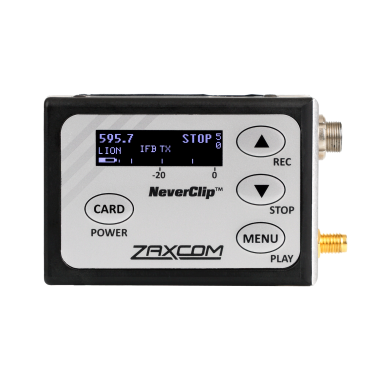

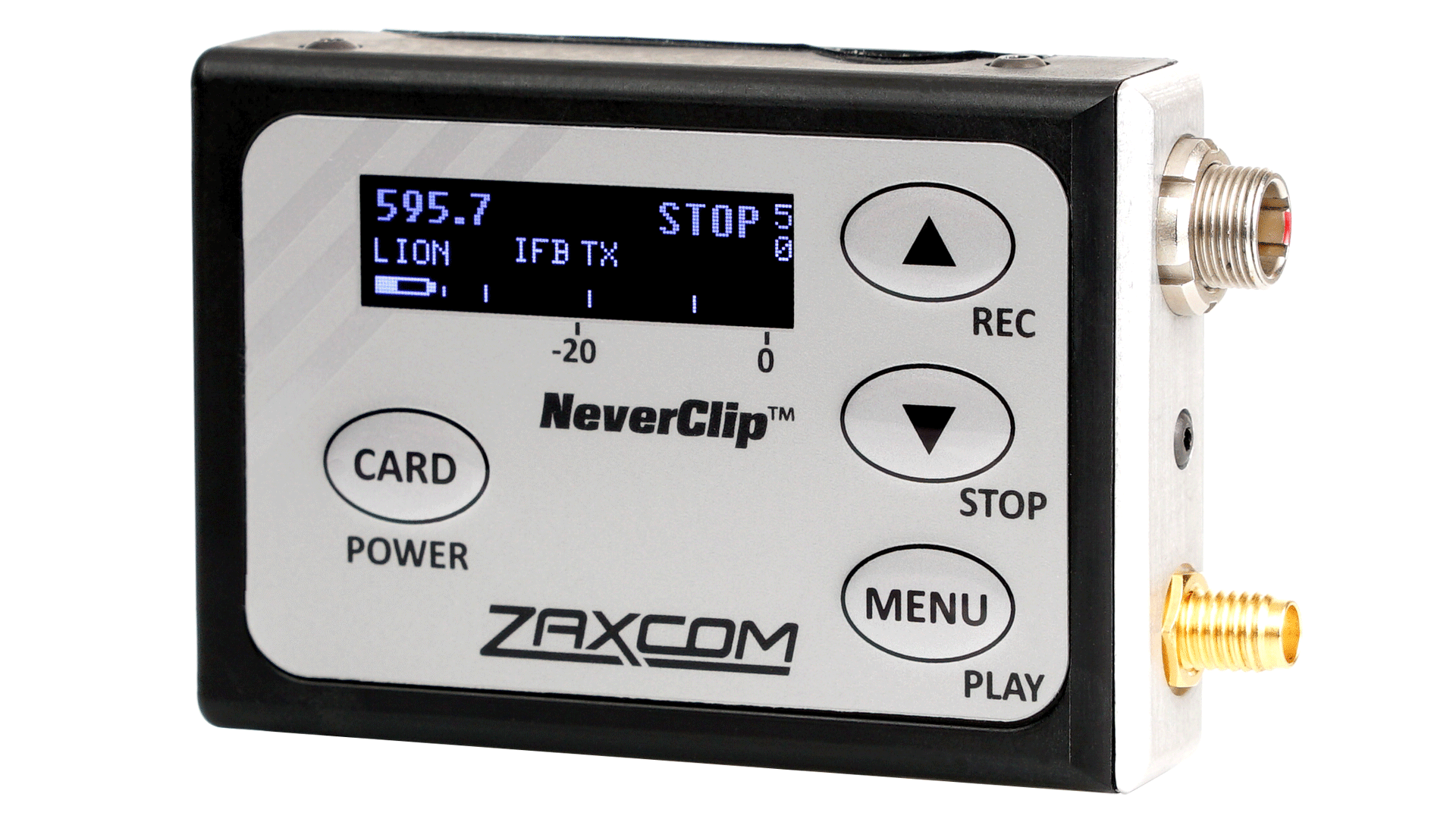

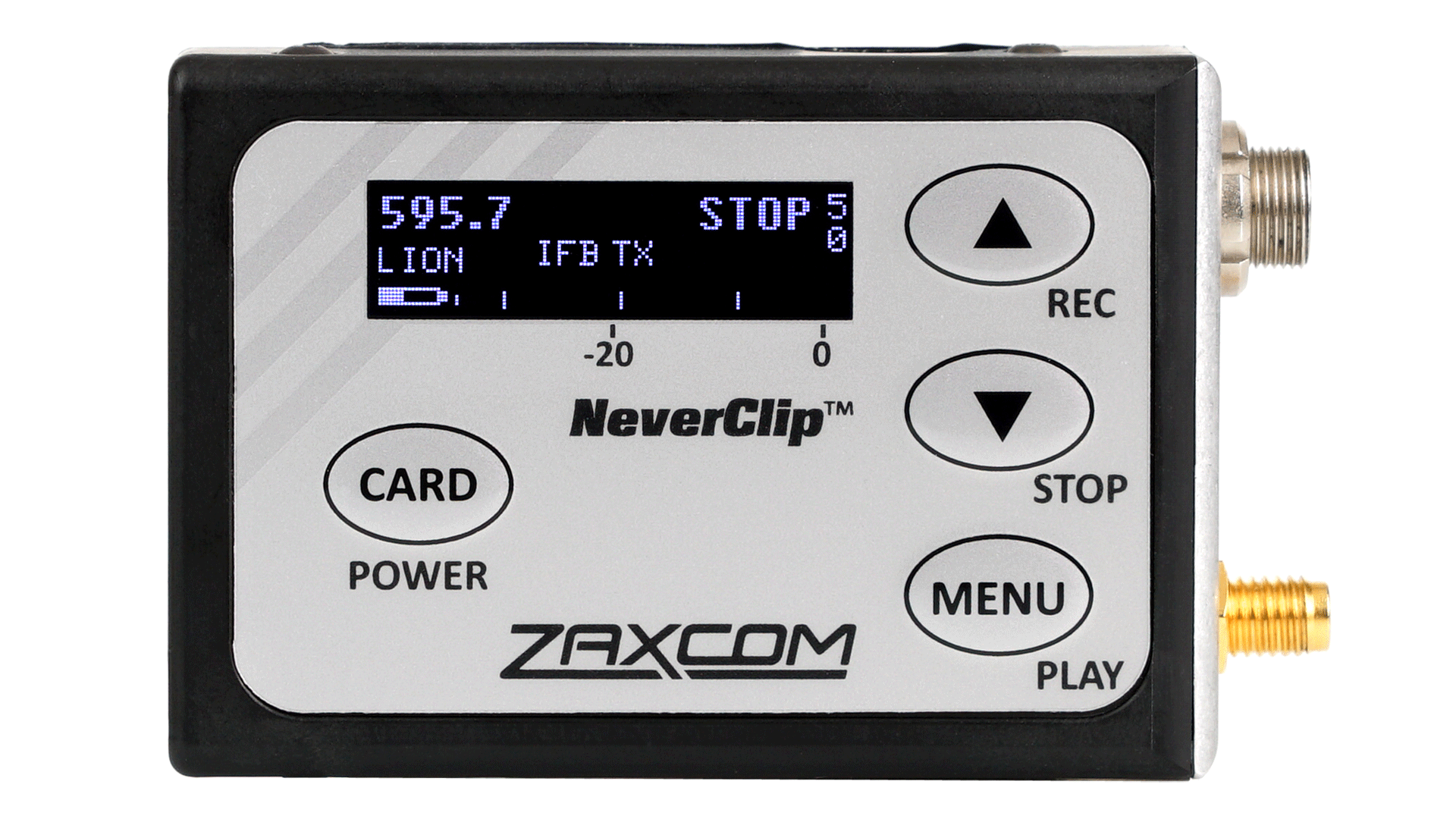

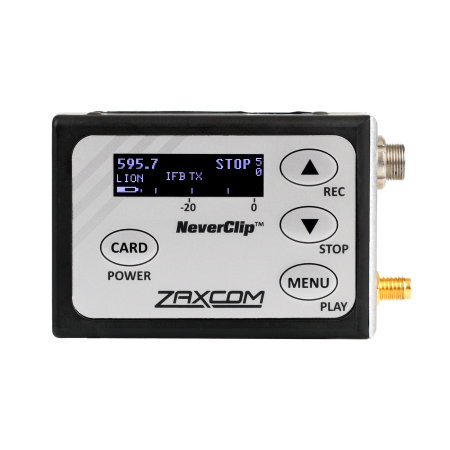

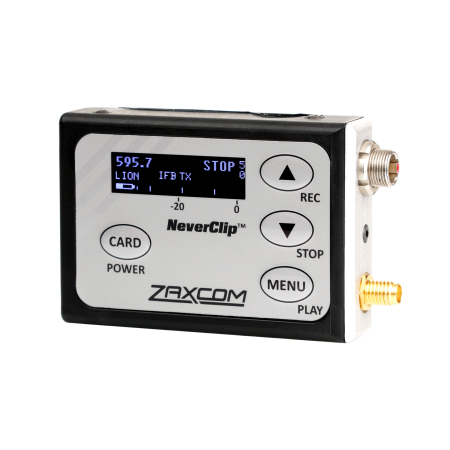

ZMT3.5 Miniature Bodypack Transmitter with NeverClip (NP-50 battery)
The ZMT3 is an ultra small bodypack transmitter filled with Zaxcom’s Emmy Award winning Digital Recording Wireless features like NeverClip™, PowerRoll™ and ZaxNet remote control. This tiny unit will surely open the door to new ways of recording sound for television, sports, theatre and feature films.
ZMT3.5 – covering blocks 20 through 23 (512-614 MHz)
Description
The ZMT3 is a wide-band transmitter featuring Zaxcom’s High Density (ZHD) Modulation. The ZMT3 transmitters are also capable of running all existing mono Zaxcom modulations maintaining compatibility with all Zaxcom receivers. ZHD modulation conforms to all currently proposed FCC regulations for spectrally efficient wireless transmission.
Small and durable, it’s housed in a high strength, impact resistant nylon polymer casing with rounded edges, machined metal and rubber gaskets. ZMT runs cool, the combination of the nylon composite case and its power efficiency make the heat transfer practically non existent.
The ZMT3 works with ZaxNet, Zaxcom’s 2.4-GHz RF network that distributes remote control commands, timecode and IFB audio. With ZaxNet, one can remotely control transmitter settings such as gain, frequency channel selection, transport controls and output power levels. The ZMT3 also sends a Quality Control audio signal over ZaxNet so when micing someone you don’t have to go to the cart to hear how it sounds, you can use an ERX to listen to the mic right on the spot.
Tech Specs
- Transmitter
- RF Modulation: Proprietary Digital Method
- ZMT3.5 RF Frequency Range: 512 - 614 MHz
- ZMT3.6 RF Frequency Range: 596 - 698 MHz
- RF Frequency Step: 100 KHz
- RF Bandwidth in ZHD48 Mode: 50 KHz
- RF Bandwidth in ZHD96 Mode: 100 KHz
- RF Bandwidth in XR Mode: 200 KHz
- Channel Separation in ZHD48 Mode: as close as 100 KHz (receiver dependent)
- Channel Separation in ZHD96 Mode: as close as 200 KHz
- Channel Separation in XR Mode: 400 KHz

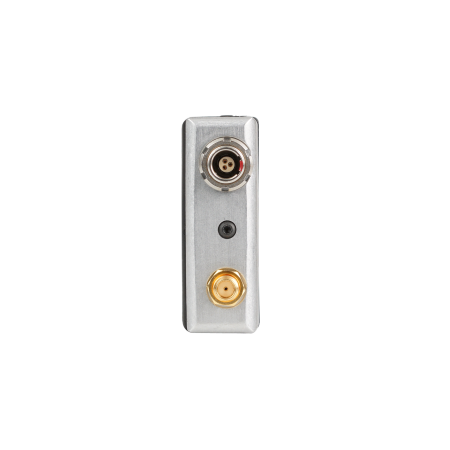

- Antenna Connector: 50 Ω SSMA Female
- Emission Designator: 180 KV2E, 100 KV2E, 50 KV2E
- FCC Part: 74.861
- Transmitter Audio
- Dynamic Range: 128 dB
- Distortion: 0.002%
- Frequency Response: Mode 0: 20 Hz to 16 kHz / T & M Mode 0.2 Hz to 16 kHz
- High Pass Filter: Off or 30 to 220 Hz, Steps: 10 (6 dB Per Octave)
- Mic Power: 3.3 VDC

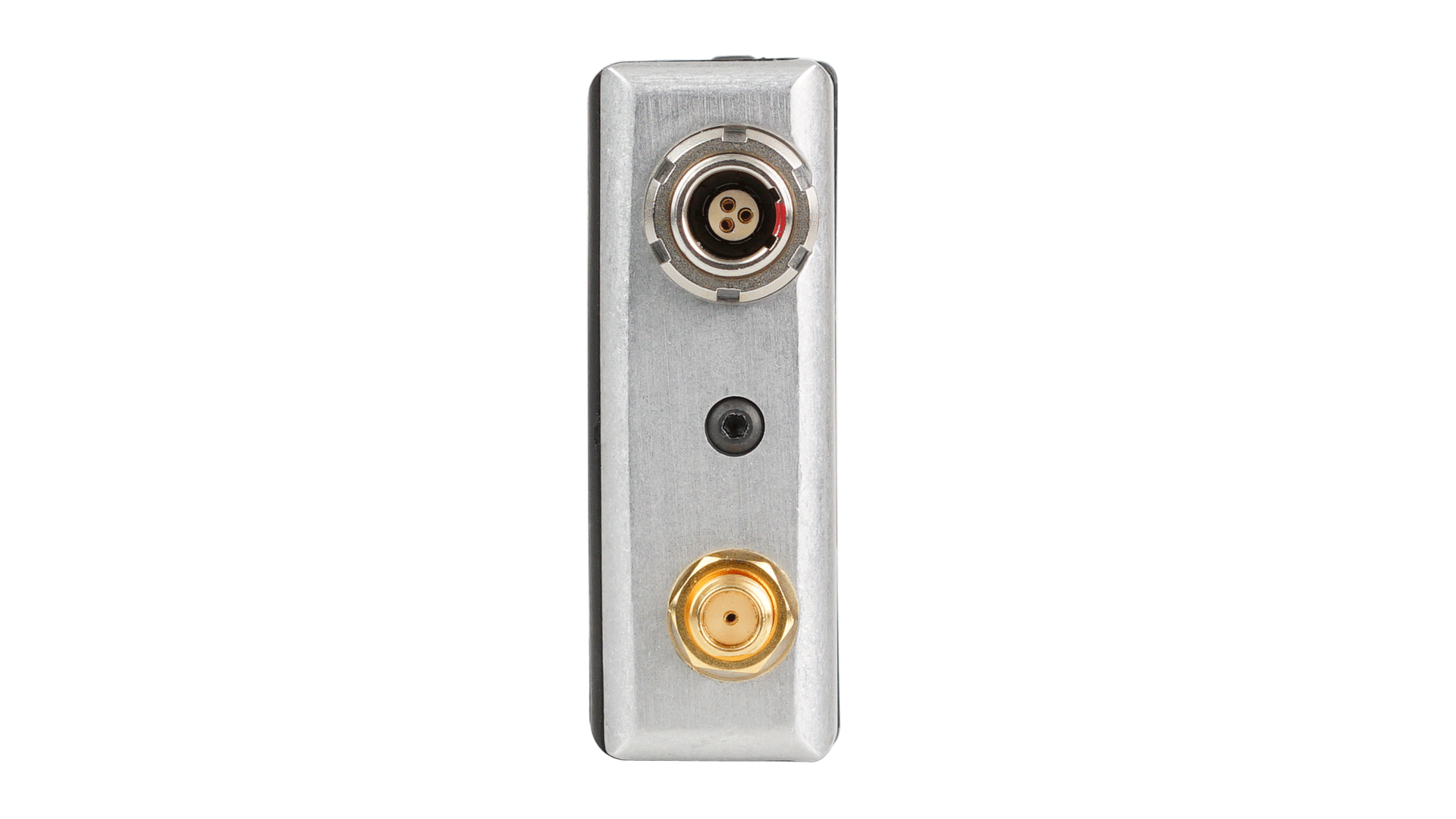

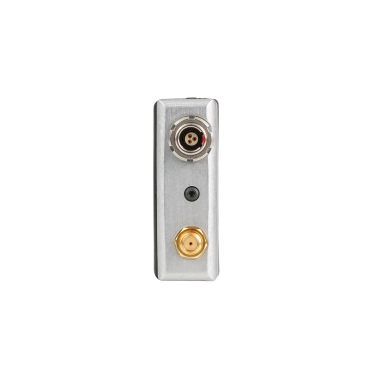

- Mic Connector: 3-Pin Micro LEMO
- Input Range: -60 to -30 dBu
- Mic Impedance: 6.8 k Ω
- ADC Bit-Depth: 24 Bits
- ADC Sampling-Rate: 48 kHz
- Timecode Reader / Generator
- Timecode output: 3-Pin Micro LEMO
- Clock Accuracy: 1.54 PPM (1 Frame Out in 6 Hours)
- Timecode Type: SMPTE
- Timecode Frame-Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
- Internal Recording

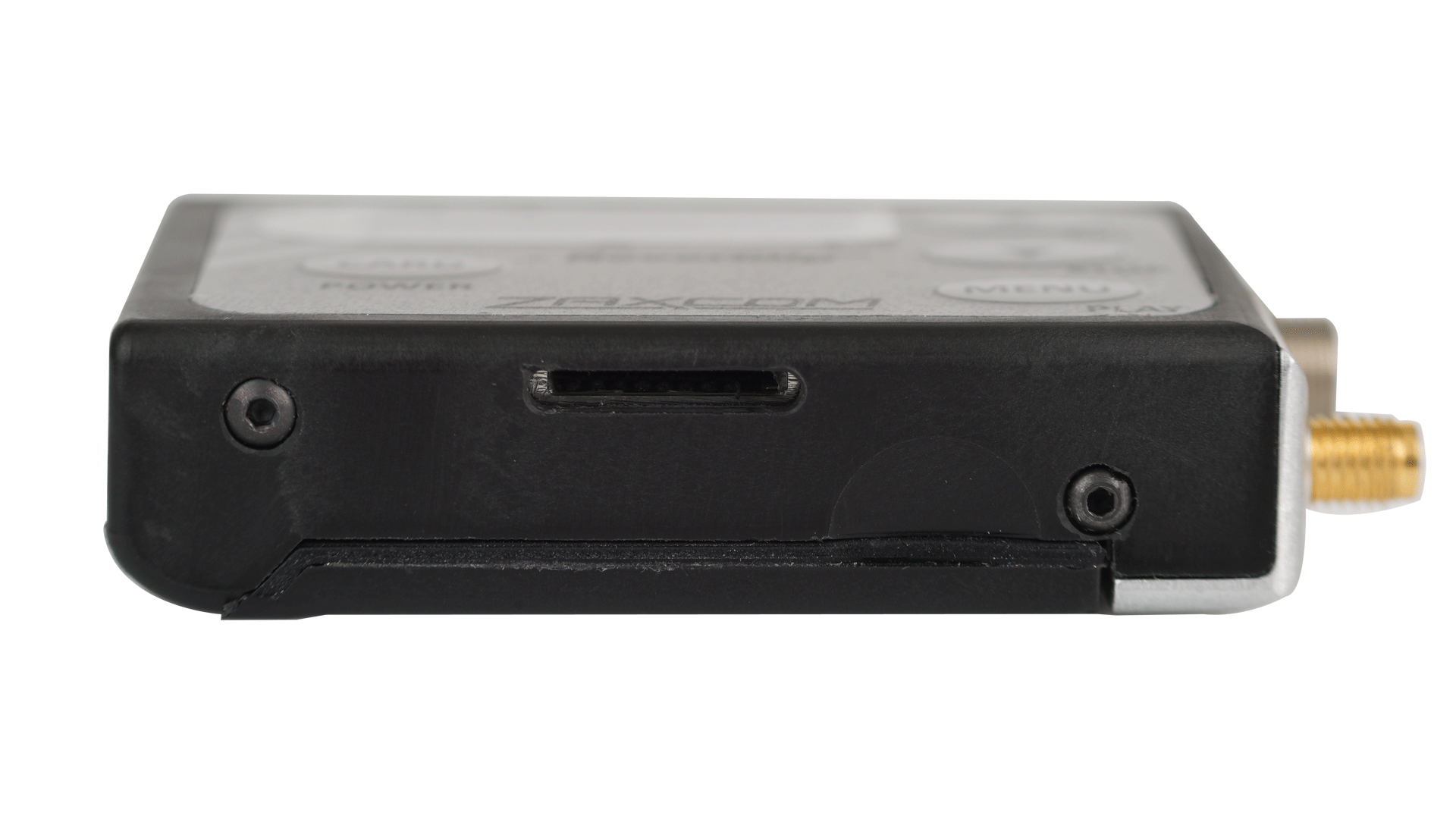

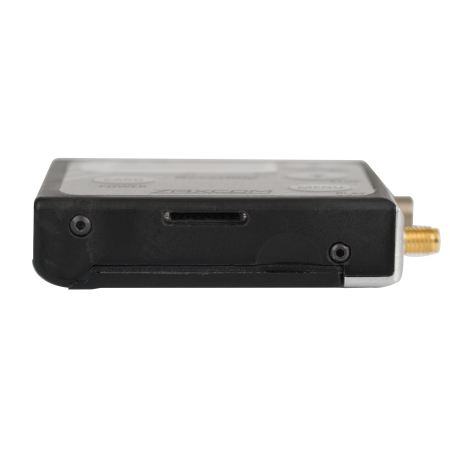

- Media: MicroSD Card (Flash Memory)
- File Format: .ZAX / Converts to BWAV or MP3
- 2.4 GHz ZaxNet Receiver
- RF Frequency Range: 2.403 to 2.475 GHz
- RF Modulation: Digital Spread Spectrum
- RF Frequency Step: 0.001 GHz (1 MHz)
- RF Bandwidth: 1 MHz
- Channel Separation: 2 MHz
- Sensitivity: -96 dBm
- Physical
- Weight: 2.2 oz / 62 grams with Battery

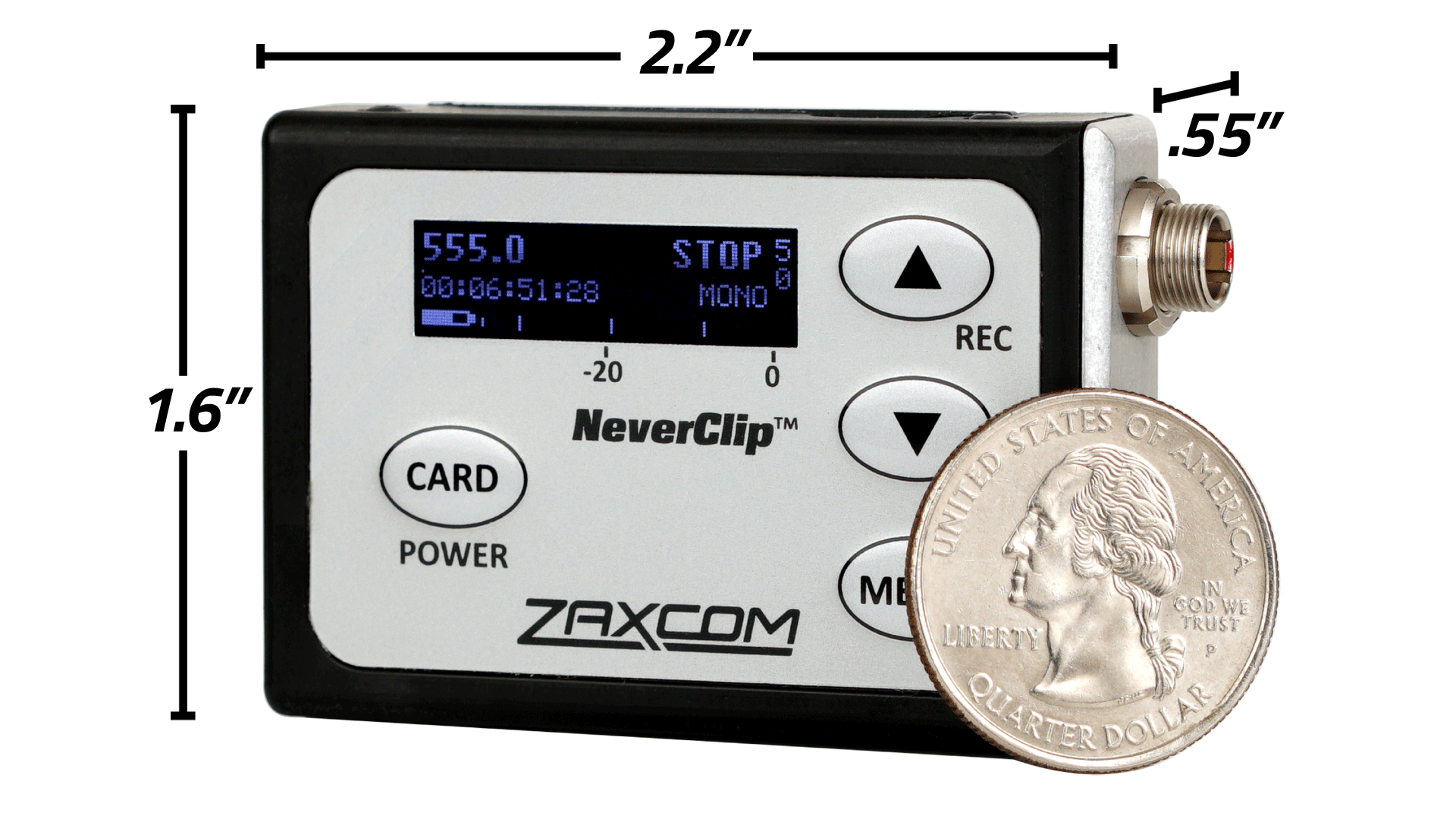

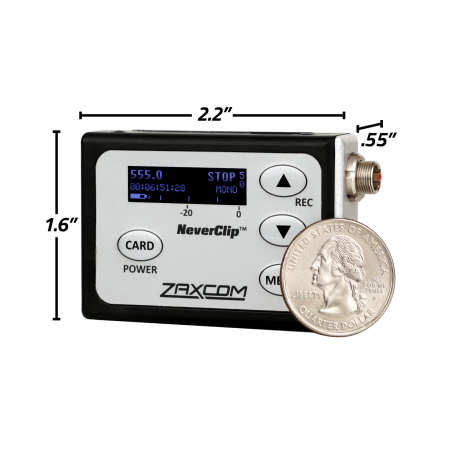

- Dimensions (H x W x D): 2.2″ x 1.6″ x .55″ / 55.8mm x 40.6mm x 14mm
- Display: Graphic OLED
- Power
- Power Output: 25 / 50 / 75 mW – Software Selectable

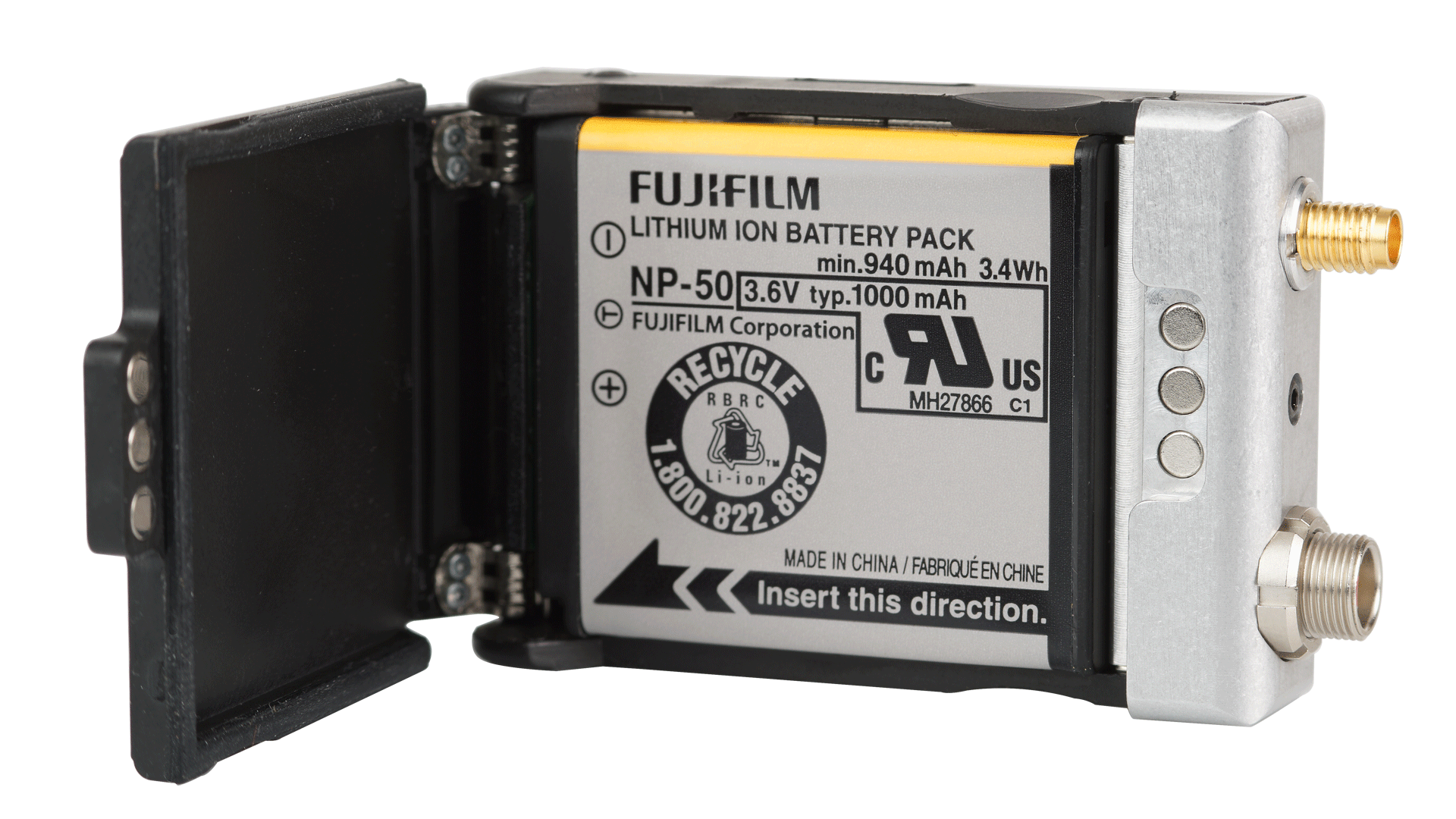

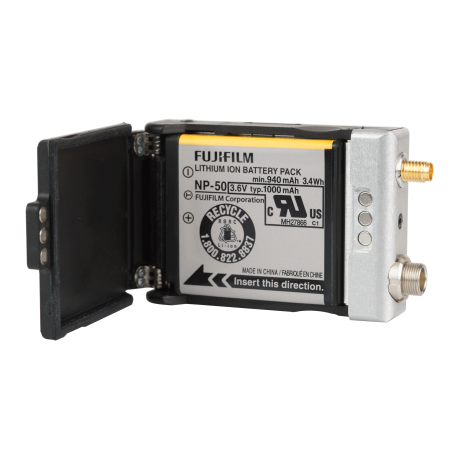

- Battery Type: NP-50
- Battery Life: Up to 5.5 Hours
