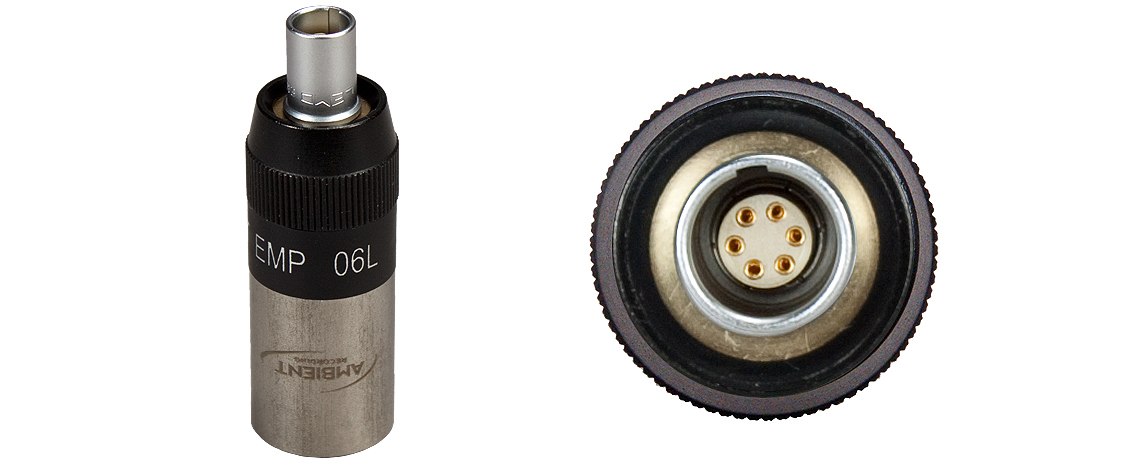

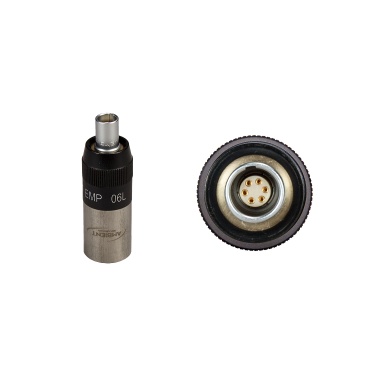

Ph 48 volts/electret converter Lemo series 0B 6-pin, Micron
The EMP06L Electret Microphone Power Adapter from Ambient Recording allows hardwired use of a lavalier mic by converting phantom 48V to 5.6V electret power, and outputs an electronically balanced signal with low impedance. This adapter is designed for use with Micron 700 Series and Explorer Series microphones, and converts a 6-pin LEMO connector to a standard 3-pin XLR male connector.
Tech Specs
| Adapter Type |
Converts phantom 48 V to electret 5.6 V power |
| Connectors |
6-pin LEMO Series 0B to 3-pin XLR male |
| Length |
2.1" (54 mm) approx. |
| Diameter |
Adapter: 0.8" (20 mm) approx.
LEMO connector: 0.3" (8 mm) |
| Weight |
1.98 oz (56 g) approx. |
