Ph 48 volts/electret converter TA5M Lectrosonics

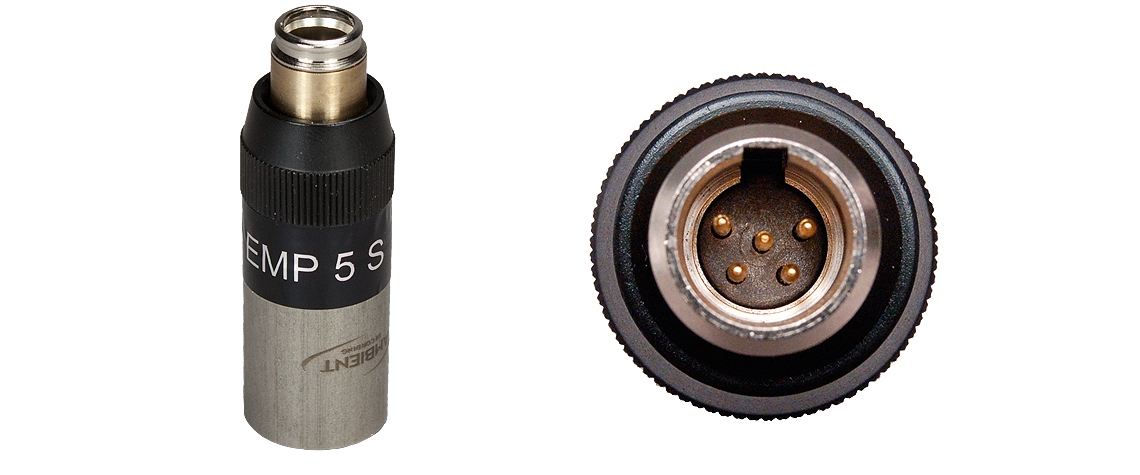

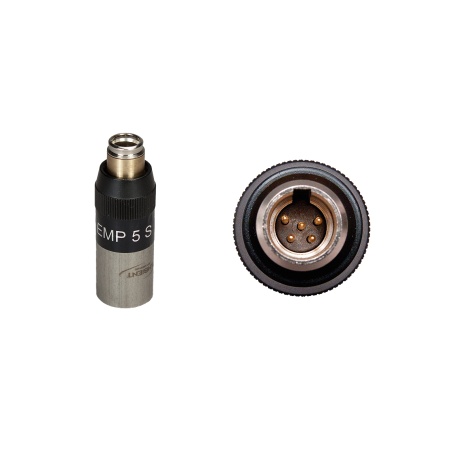

The EMP5S Electret Microphone Power Adapter from Ambient Recording allows hardwired use of a lavalier mic by converting phantom 48V to 5.6V electret power, and outputs an electronically balanced signal with low impedance. This adapter is designed for use with Lectrosonics microphones and converts a 5-pin Switchcraft connector to a standard 3-pin XLR male connector.
Tech Specs
| Adapter Type |
Converts phantom 48 V to electret 5.6 V power |
| Connectors |
5-pin Switchcraft to 3-pin XLR male |
| Length |
2.1" (53 mm) approx. |
| Diameter |
Adapter: 0.8" (20 mm) approx.
Switchcraft connector: 0.4" (11 mm) |
| Weight |
2.05 oz (58 g) approx. |
