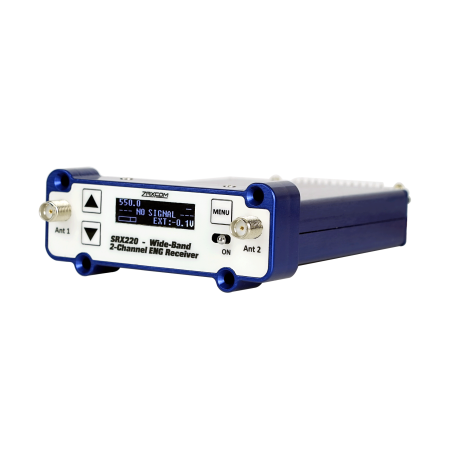

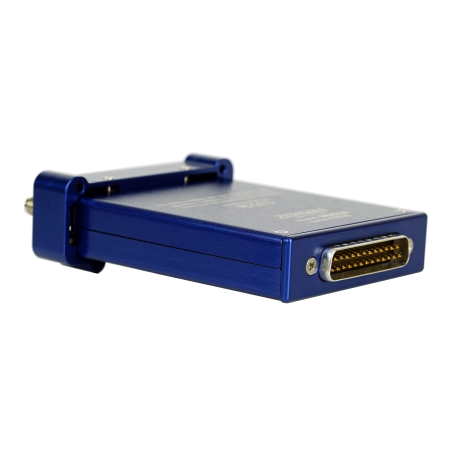

SRX220 wide-band Slot-In receiver Zaxcom

• Compatible with all Zaxcom transmitters
• Outputs up to two channels of audio from a single transmitter as either line-level, -18 dB or AES
• Receives SMPTE timecode embedded in the UHF signal and outputs timecode via the DB25 connector

• Receiver
  • Receiver RF Channels: 1
  • Diversity method: antenna switching
  • RF Modulation: proprietary digital method
  • RF Frequency Range: 518 to 698 MHz
  • RF Frequency Step: 100 KHz
  • RF Signal Bandwidth: 200 KHz
  • Channel Separation: 500 KHz (700 KHz recommended) / 100 KHz High Density Operation
  • Sensitivity: -114 dBm
  • Antenna Connector: 50-ohm SMA female X 2
• Receiver Audio – Analog Output X 2
  • Dynamic Range: 116 dB
  • Distortion: 0.002%
  • Frequency Range: 20Hz to 16kHz
  • DAC Bit-depth: 24 bits
  • Connector: DB25
  • Audio Output: Active analog balanced
  • Audio Output Level: -18dBm (mic), -10dBm (consumer) or 0dBm (line)
• Receiver Audio – Digital Output
  • Signal Format: AES Balanced
  • AES dynamic range: 123dB
  • Frequency Range: 20Hz to 16kHz
  • AES output: AES3 balanced at 96KHz
  • Audio Output Connector: DB25
• Timecode
  • Timecode output connector: DB25
  • Timecode output level: .01VPP, .2VPP, .5VVP, .9VPP, 1.5VPP
  • Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30
• Power
  • External Power: 6 to 18 VDC (140mA @ 12VDC)
  • Power Connector: DB25
• Misc.
  • Serial Control Port: RS422
  • Weight: 4.9 oz
  • Dimensions: .73″ x 2.7″ x 3.75″
  • Display: Graphic White OLED Panel
